Features
180° MULTI-DIRECTIONAL AIR-OUTPUT CONTROL AT YOUR FINGERTIPS
Scag’s exclusive NDS (Nozzle Direction System) provides unprecedented control of the air-discharge vertical tilt and horizontal rotation.

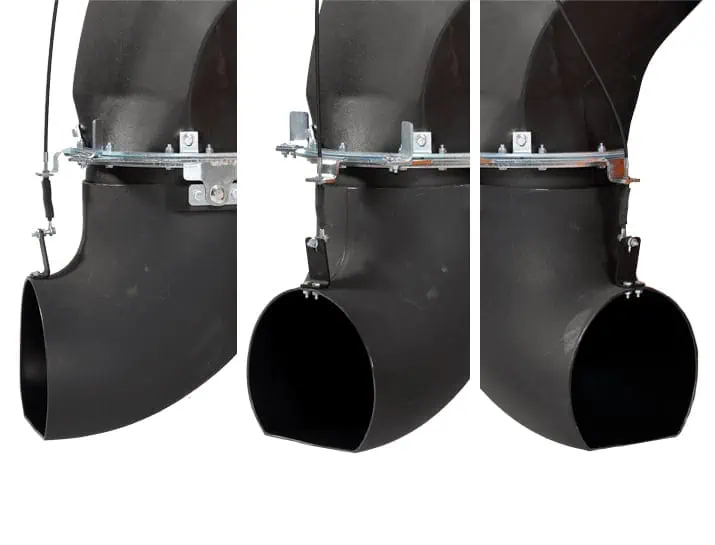

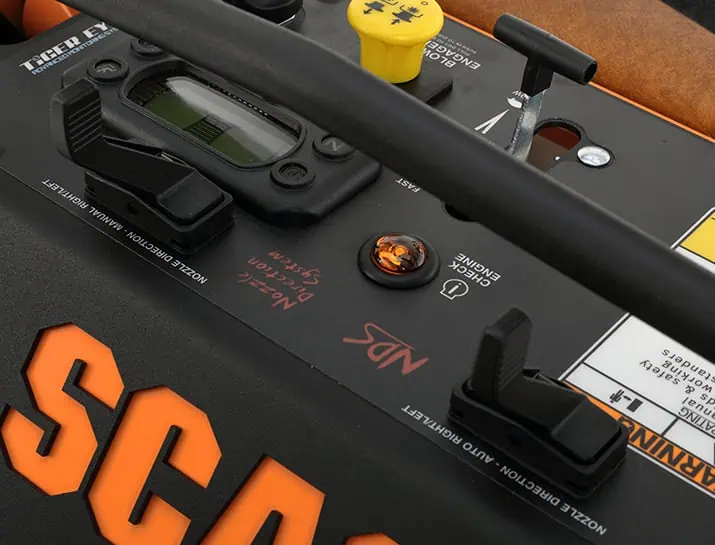

DUAL HORIZONTAL-ROTATION CONTROLS
Adjust the nozzle’s rotation up to 180 degrees using an Auto Left/Right Switch and a Fine-Tune Switch.

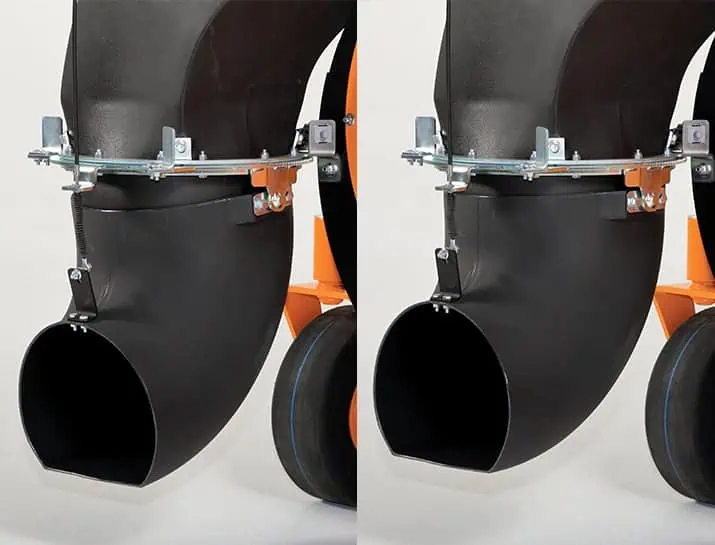

VERTICAL-TILT CONTROL
Adjust the tilt of the discharge nozzle up to 16 degrees: lower to help loosen and blast stubborn debris or higher to prevent blowback.

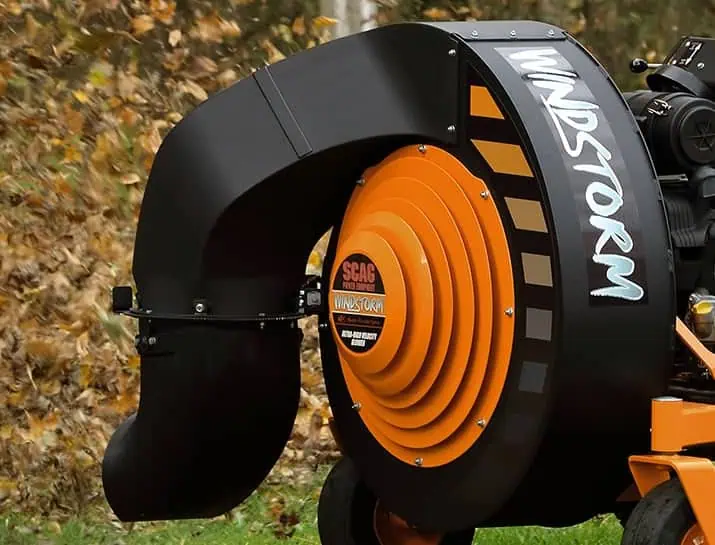

MASSIVE AIR OUTPUT
Massive air output of up to 6,000 effective CFM (Cubic Feet per Minute) (7,500 theoretical peak CFM) provides incredible ground-clearing force on a variety of surfaces and applications.
RELIABLE PERFORMANCE AND SMOOTH OPERATION
Heavy-duty blower construction ensures years of dependable service and worry-free performance. The 23″ steel, 8-blade impeller is dynamically balanced for smooth operation. The impeller mounting utilizes a tapered locking hub.

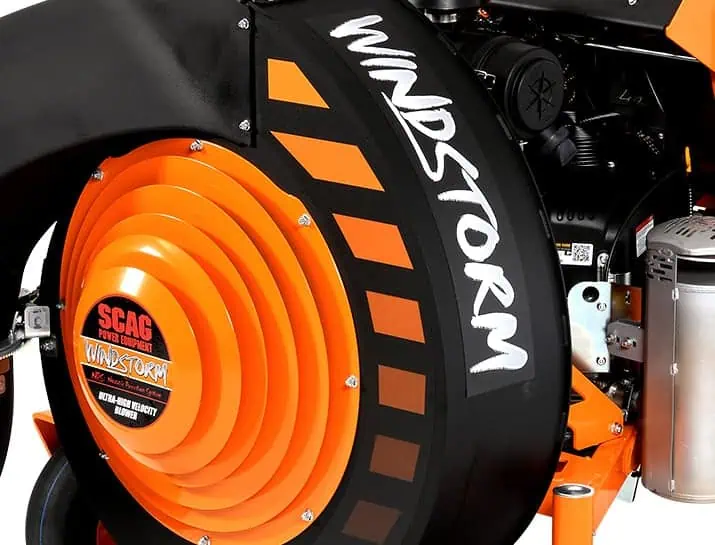

LARGE, DUAL AIR INTAKE
Built with a front and rear air intake. Housing is aerodynamically designed to optimize intake without causing turbulence.

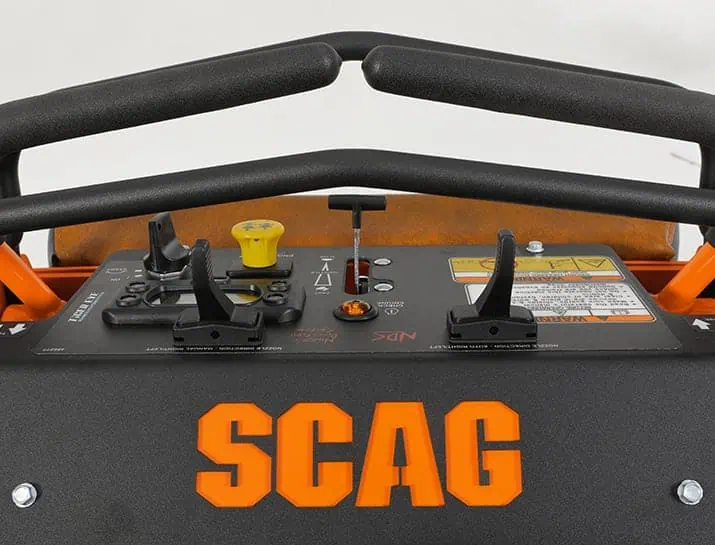

CONTROL AND INSTRUMENT PANEL
Proven, ergonomic drive-control lever’s design provides incredible ease-of-use. Instrument panel features NDS, ignition switch, PTO switch, throttle control, choke control and Scag’s exclusive Tiger Eye™ Advanced Monitoring System.
EXTRA-LARGE COMFORT CUSHION AND SUSPENSION PLATFORM
With an extra-thick cushion for operator comfort, the coil-suspension operator platform delivers an unmatched, ultra-comfortable ride. Tie-down points are built in to quickly secure to a trailer. Removable cushion and lower panel allow for quick and easy service access. Convenient engine and hydraulic oil drains are located underneath.
HUGE POWER – 37 HP

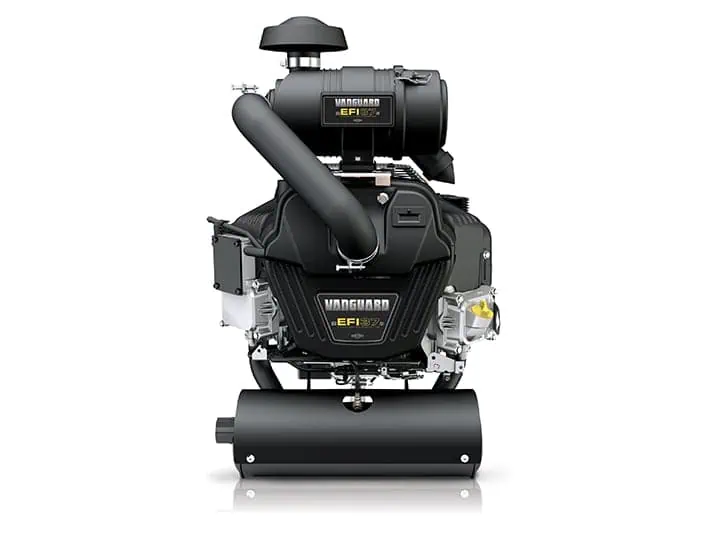

Powered by a 37 hp Vanguard® BIG BLOCK™ EFI air-cooled engine for huge power, along with exceptional efficiency and dependable performance.
Specifications
| Product Specification | Windstorm |
|---|---|
| Model | WS23-37BV-EFI |
| Total Fuel Capacity | 8 Gallons |
| Engine | Briggs Vanguard™ BIG BLOCK™ – electronic fuel injection |
| Horsepower | 37 HP |
| CFM Output | “Effective CFM – 6,000 Theoretical Peak CFM – 7,500” |
| Electric Clutch | Ogura GT3.5 (250 ft lb) with Softstart Electric Clutch Control |
| Frame Construction | All-steel, welded 10-gauge |
| Impeller Construction | All-steel, welded, 8-blade, dynamically balanced |
| Impeller Mounting | Tapered locking hub |
| Impeller Diameter / Width | 23″ / 8.5″ |
| Blower Housing Construction | All-steel, welded, 12-gauge front and side housing plate and 10-gauge back housing plate |
| Blower Housing Width | 10″ |
| Blower Tilt Angle | 16 degrees of total vertical tilt; 180 degrees of left/right horizontal rotation |
| Handlebar | n/a |
| Vibration Control | n/a |
| Discharge Opening | 69 square inches |
| Left / Right Discharge Control | Nozzle Direction System offers up to 180 degrees of rotation. |
| Discharge Angle Control | Yes – mechanical lever |
| Axle | n/a |
| Front Wheel(s) | 13″ x 5″-6″, flat-free |
| Rear Wheels | 24″ x 12″-12″, 4-ply |
| Accessories | Light Kit, Chrome Wheel Covers, Air Filter Monitor |
| Length | 71.5″ |
| Width | 51″ |
| Height | 47.25″ |
| Weight | 943 lb |
| Warranty | 2-Year Commercial; 2-Year Residential; 90-day Rental |
