Features
52″, 61″ OR 72″ CUTTING WIDTH
The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 52″, 61″ and 72″ widths.
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.

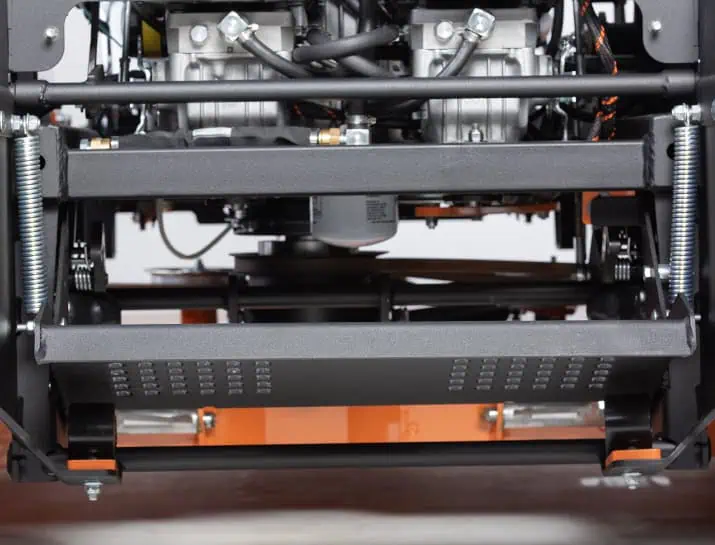

EXPERIENCE AN UNMATCHED, ULTRA-COMFORTABLE RIDE
Spacious operator platform with adjustable suspension delivers a smooth ride and reduces operator fatigue. Extra-large comfort cushion allows for comfortable operation, hour after hour. Adjustable platform suspension further enhances operator comfort.

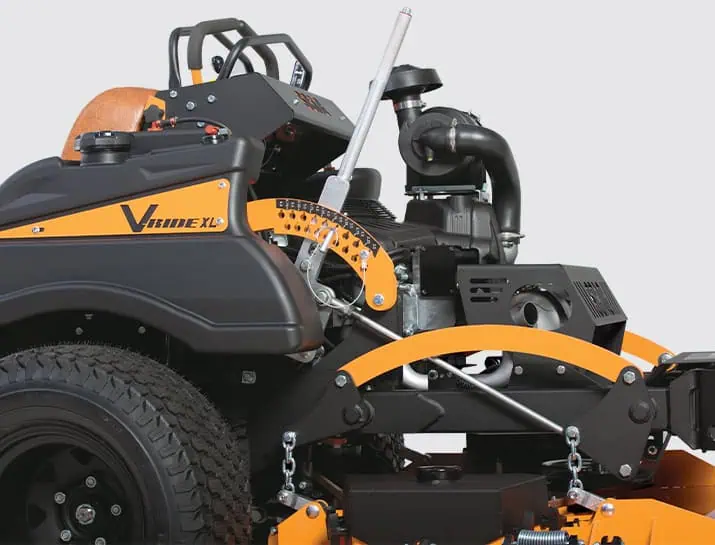

CONVENIENT, SPRING-ASSISTED LEVER
Change cutting heights from 2-6″ in ¼” increments. Deck can be lifted from the operating position with the pull of a spring-assisted lever.
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.
SPEEDS UP TO 11.6 MPH
Heavy-Duty Hydro-Gear pumps (16 cc) and high-torque Hydro-Gear wheel motors (18 ci) deliver dependable power, with speeds up to 11.6 mph. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.

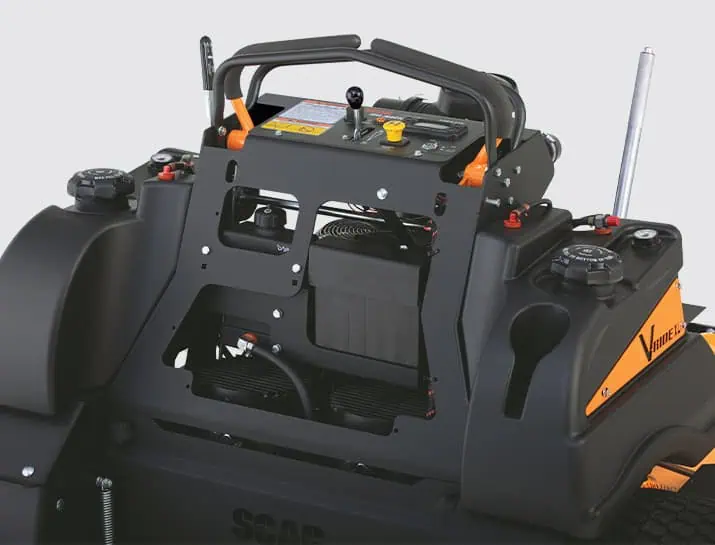

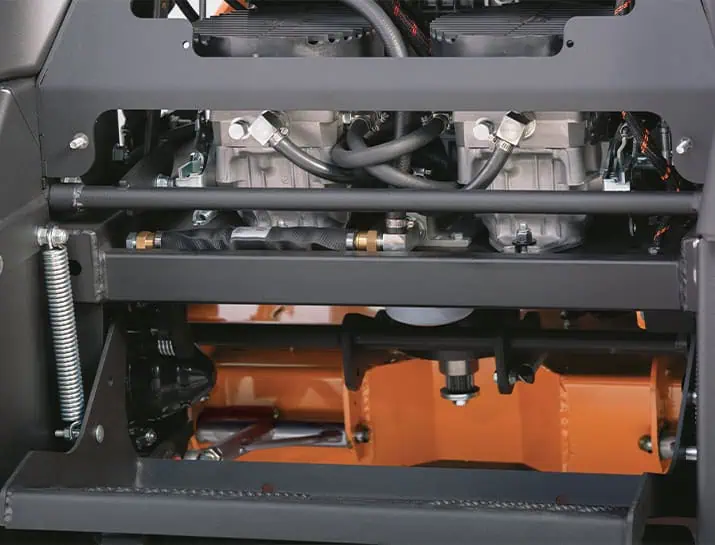

MORE UPTIME
Comfort cushion and lower panel are removable to allow quick and easy service access to the hydraulic system. This gives operators unrestricted engine compartment access for easy-to-reach grease Zerks and many more features, making servicing the V-Ride XL simple. Spend less time in the shop and more on the job.

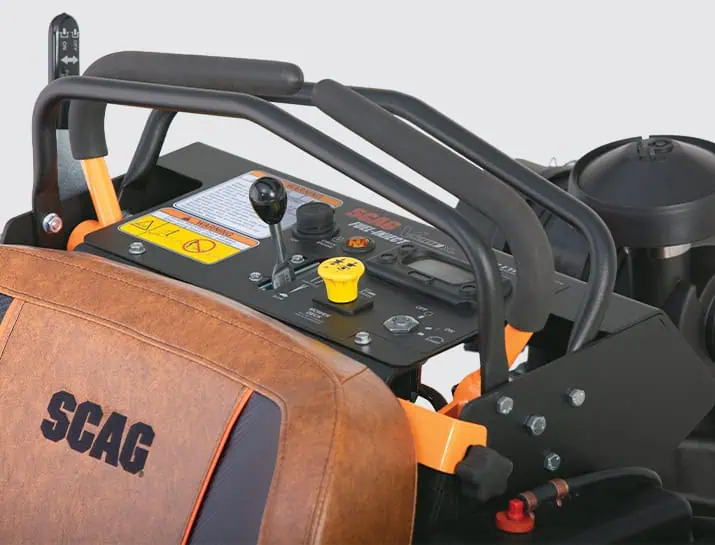

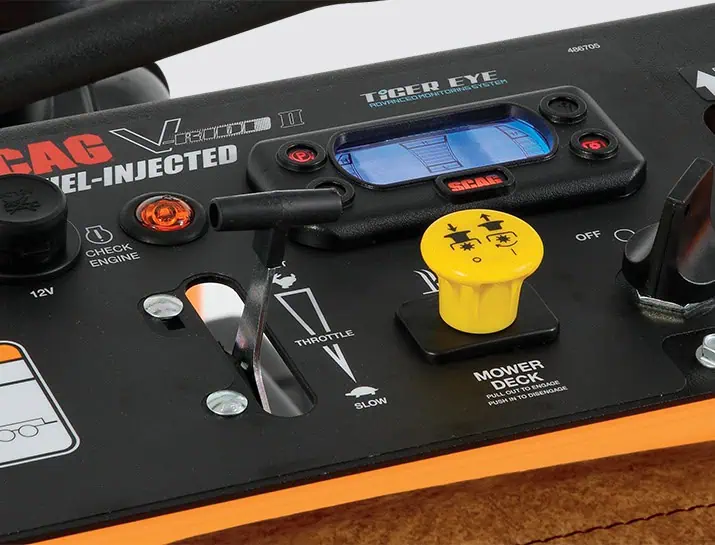

KEEP A REAL-TIME “EYE” ON IMPORTANT SYSTEM FUNCTIONS
The Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat. (Specific functions vary by mower model and engine.)

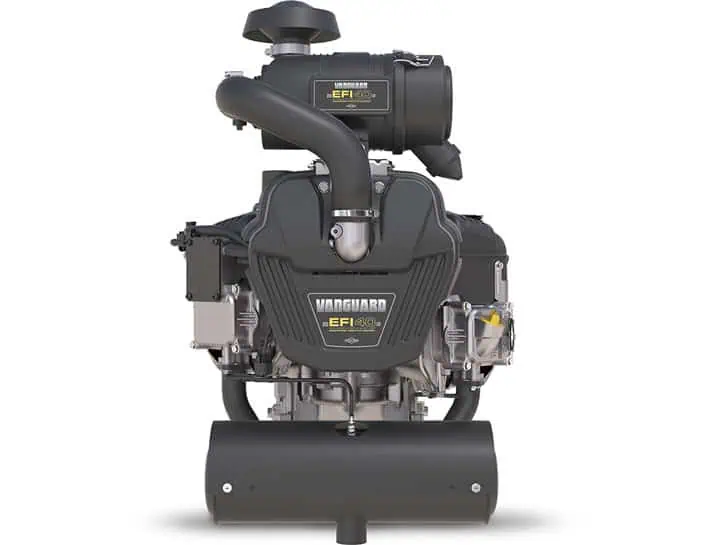

HUGE POWER, UP TO 40 HP
Choose from Briggs & Stratton Vanguard®, Kawasaki® or Kohler engines; electronic fuel injection (EFI) is standard on all V-Ride XL models.
Engine & Deck Combinations
| $15,499 | Deck Width | Engine | Horsepower |
|---|---|---|---|
| SVRXL-52V-38FX-EFI | 52 | Kawasaki® FX – electronic fuel injection  |
38 |
| SVRXL-52V-40BV-EFI | 52 | Briggs & Stratton Vanguard® – electronic fuel injection |
40 |
| SVRXL-61V-38CV | 61 | Kohler® Command PRO® CV – electronic fuel injection |
38 |
| SVRXL-61V-38FX-EFI | 61 | Kawasaki® FX – electronic fuel injection |
38 |
| SVRXL-61V-40BV-EFI | 61 | Briggs & Stratton Vanguard® – electronic fuel injection |
40 |
| SVRXL-72V-40BV-EFI | 72 | Briggs & Stratton Vanguard® – electronic fuel injection |
40 |
| SVRXL-72V-38FX-EFI | 72 | Kawasaki® FX – electronic fuel injection |
38 |
Pre-production unit shown in photos. Actual product may vary. Specifications subject to change.
Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
Engine & Deck Combinations
| Product Dimensions* | 52″ V-Ride XL | 61″ V-Ride XL | 72″ V-Ride XL |
|---|---|---|---|
| Length | 70.5″ | 73.5″ | 76″ |
| Tracking Width | 51.5″ | 53.2″ | 53.2″ |
| Width (chute down) | 65.25″ | 73.5″ | 83″ |
| Width (chute in transport position) | 53.75″ | 62.75″ | 73.75″ |
| Height | 47.75″ | 47.75″ | 47.75″ |
| Weight | 1,150–1,179 lb | 1,201–1,266 lb | 1,264–1,293 lb |
| * Dimensions are approximate. |
Specifications
| GENERAL | |
|---|---|
| Total Fuel Capacity | 12 gallons |
| Drive Tires | 24″ x 9.5″-12″ (52″)
24″ x 12″-12″ (61″ and 72″) |
| Caster Tires | 13″ x 6.5″-6″ |
| DRIVE SYSTEM | |
| Drive System Type | Dual Pump & Motor |
| Pumps | Hydro-Gear 16 cc |
| Motors | Hydro-Gear 18 ci |
| Forward Ground Speed | Up to 11.6 mph |
| Reverse Ground Speed | 5 mph |
| Parking Brake | Hand lever |
| DECK | |
| Cutting Widths | 52″, 61″ and 72″ |
| Type | Velocity Plus™ cutter deck |
| Cutting Height | 2″ to 6″ in .25″ increments |
| Lift | Hand lever |
| Construction | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. |
| Spindles | Cast-iron housing with tapered roller bearings |
| Blade Engagement | Ogura 3.5 (250 ft lb)
Adjustable air-gap for extended lif |
