Stand-On Mini Skid Steers

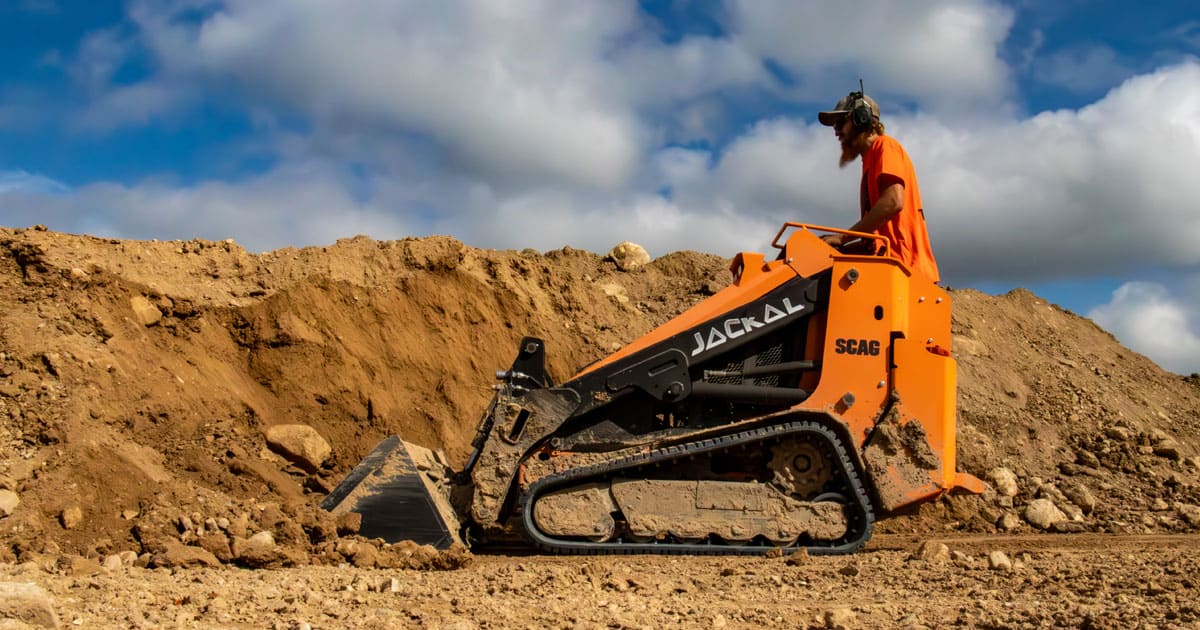

Jackal
Making New Tracks
Breaking new ground. Making a stand for more diverse profitability. However you say it, the Scag JackalTM stand- on mini skid steer is doing it. Hit the ground running with this bold workhorse and dig into untapped productivity and profit-making potential.
From $75,845.00 Incl.GST
RRP
$75,845.00 Incl.GST
Actual product may differ from photos.
VERSATILE CAPABILITIES
GET THE JOB DONE
Featuring a 510kg lift capacity and a 1,425kg tip capacity, the Jackal delivers impressive strength for demanding tasks. Its 2.11m hinge pin height provides a high lift and dump point, making it easy to reach into large skips, containers, and truck beds. With auxiliary hydraulic flow up to 56.8L per minute and 206.8 bar pressure, it offers the power and efficiency to tackle any challenge.
STANDARD BUCKET SIZE OPTIONS
OUTFITTED WITH PERFORMANCE
Comes equipped with a 34”- or 40”-wide bucket as standard equipment to make sure you’re ready to take on whatever tasks come your way. And our bucket shells are made from Grade 100, military-grade steel for unmatched strength and toughness.
REMOVABLE CUSHION
MORE UPTIME
Experience quick and easy access to maintenance and service areas with removable—and comfortable—cushion panels.
JOYSTICK DRIVE AND BUCKET CONTROLS
IN CONTROL FOR THE JOB AHEAD
Easy-to-use, ergonomic joystick drive and bucket controls provide incredible ease-of-use and simple operation.
SPACIOUS OPERATOR PLATFORM
ALL-DAY COMFORT BUILT AROUND YOUR NEEDS
Work all day long with a spacious operator platform that features suspension and padded cushions for a smooth, comfortable ride.
ULTRA-LOW CENTER-OF-GRAVITY
WORK WITH CONFIDENCE
A machine that’s designed to keep you in control with an ultra-low center-of-gravity, narrow stance, and shorter length—optimizing its overall maneuverability and stability, even when navigating narrow and tight spaces.
45-LITRE FUEL CAPACITY
STAY WORKING LONGER
Built for all-day performance, the Jackal features dual 22.7L fuel tanks with large filler necks and integrated fuel gauges for operator convenience. Ready to work from sunrise to sunset, this setup ensures fewer refuelling stops and maximum productivity.
AVAILABLE 7” AND 9” TRACK WIDTHS
READY TO ROLL
With 7” or 9” available track widths that both feature low ground pressure, this machine delivers surefooted traction for any task in any type of environment you’re working in. And easy-change capability between narrow and wide tracks means you can get the optimal footprint you need if - and when - the situation changes.
INDUSTRIAL-GRADE HYDRAULIC SYSTEM
POWER YOU CAN DEPEND ON
With productive ground speeds of up to 6.4 km/h, you can move across job sites quickly and efficiently. This ensures optimal workflow and reduced downtime, helping you get more done in less time.
Jackal Specifications
| MODEL | SJ1125-N-34-25KBD | SJ1125-W-40-25KBD | SJ1125-W-40-25YMT |
| RRP INC-GST | $75,845 | $76,505 | $76,945 |
| GENERAL | |||
| Waranty Period | 5-YR Residential / 2-YR Commercial | 5-YR Residential / 2-YR Commercial | 5-YR Residential / 2-YR Commercial |
| Engine | Kubota D1305-E4B | Kubota D1035-E4B | Yanmar 3TNV80FT-ZMYA |
| Horsepower | 24.8 hp | 24.7 hp | 24.7 hp |
| Fuel Tank Capacity | 45.4 L, Dual tanks | 45.4 L, Dual tanks | 45.4 L, Dual tanks |
| Ground Clearance | 7.5″ / 19.05 cm | 7.5″ / 19.05 cm | 7.5″ / 19.05 cm |
| DRIVE SYSTEM | |||
| Type | Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive track | Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive track | Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive track |
| Track | Dual 7″-wide, reinforced tracks included; 5.5 psi of ground pressure. Easy-change capability between narrow (7″) and optional wide (9″) tracks. | Dual 7″-wide, reinforced tracks included; 5.5 psi of ground pressure. Easy-change capability between narrow (7″) and optional wide (9″) tracks. | Dual 7″-wide, reinforced tracks included; 5.5 psi of ground pressure. Easy-change capability between narrow (7″) and optional wide (9″) tracks. |
| Pumps | Two 18cc pumps with dump valves for movement without running engine; one cooling fan | Two 18cc pumps with dump valves for movement without running engine; one cooling fan | Two 18cc pumps with dump valves for movement without running engine; one cooling fan |
| Motors | Two Parker Torqmotor TGK series 360 cc LSHT cast-iron high torque wheel motors | Two Parker Torqmotor TGK series 360 cc LSHT cast-iron high torque wheel motors | Two Parker Torqmotor TGK series 360 cc LSHT cast-iron high torque wheel motors |
| Auxiliary Hydraulic System | Up to 15 GPM; up to 3,000 psi | Up to 15 GPM; up to 3,000 psi | Up to 15 GPM; up to 3,000 psi |
| Hydro Reservior | 45.42 L capacity cooling reservoir; uses MV68 fluid and 10 micron filter | 45.42 L capacity cooling reservoir; uses MV68 fluid and 10 micron filter | 45.42 L capacity cooling reservoir; uses MV68 fluid and 10 micron filter |
| Steering / Travel Control | Easy-to-use joystick drive control lever via pilot servo | Easy-to-use joystick drive control lever via pilot servo | Easy-to-use joystick drive control lever via pilot servo |
| Deep Valves | Allows for movement without engine running | Allows for movement without engine running | Allows for movement without engine running |
| Parking Brake | Mechanical sprocket lock | Mechanical sprocket lock | Mechanical sprocket lock |
| Safety Group | Footplate-actuated operator presence system interlock to engine kill | Footplate-actuated operator presence system interlock to engine kill | Footplate-actuated operator presence system interlock to engine kill |
| Forward Speed Range | up to 6.44 km/h | up to 6.44 km/h | up to 6.44 km/h |
| LIFT SYSTEM / LOADER ARMS | |||
| Type | Hydraulic-powered radial lift loader arms with universal-type mounting system to accept a wide variety of buckets and other attachments | Hydraulic-powered radial lift loader arms with universal-type mounting system to accept a wide variety of buckets and other attachments | Hydraulic-powered radial lift loader arms with universal-type mounting system to accept a wide variety of buckets and other attachments |
| Control | Easy-to-use joystick control lever | Easy-to-use joystick control lever | Easy-to-use joystick control lever |
| Lift Capacity, Maximum | 510.29 kg | 510.29 kg | 510.29 kg |
| Tip Capacity, Maximum | 1425.19 kg | 1425.19 kg | 1425.19 kg |
| Bucket Width | 34″ / 86.36 cm inside width 36″ / 91.44 cm cutting width |
34″ / 86.36 cm inside width 36″ / 91.44 cm cutting width |
34″ / 86.36 cm inside width 36″ / 91.44 cm cutting width |
| Hinge Pin Height | 83″ / 210.82 cm | 83″ / 210.82 cm | 83″ / 210.82 cm |
| Maximum Bucket Angle | 25 degrees | 25 degrees | 25 degrees |
| Bucket Dump Angle | 40 degrees | 40 degrees | 40 degrees |
| PRODUCT DIMENSIONS (approximate) | |||
| Length (without front attachment) | 86″ / 218.44 cm | 86″ / 218.44 cm | 86″ / 218.44 cm |
| Length (with front attachment) | 112″ / 284.48 cm | 112″ / 284.48 cm | 112″ / 284.48 cm |
| Width (without front attachment) | 35.5″ / 90.17 cm | 35.5″ / 90.17 cm | 35.5″ / 90.17 cm |
| Width (with front attachment) | 36″ / 91.44 cm | 36″ / 91.44 cm | 36″ / 91.44 cm |
| Height | 56.5″ / 143.51 cm | 56.5″ / 143.51 cm | 56.5″ / 143.51 cm |
| Weight (no fuel, no attachment) | 1339 kg | 1339 kg | 1339 kg |
| Weight (no fuel, with 34″ bucket) | 1418 kg | 1418 kg | 1418 kg |
NOTE: Images shown are for illustrational purposes only, actual product may vary. Specifications subject to change. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
