Truck Loaders
Industrial Tow-Behind
LEAVE THE REST. GET THE BEST.
When the best demand the best, it’s time for the toughest and most powerful: the Scag Industrial Tow-Behind Truck Loader. No matter the job – from landscaping and municipal operations to golf courses – this machine features the commercial-grade size and performance needed to get the job done. Leave the rest behind and work with the best.
From $135.86 / week
RRP
$135.86 / week
Actual product may differ from photos.
4-BLADE IMPELLER
FABRICATED AND BALANCED
Inside the unit’s 10.5″-wide housing is a welded-steel impeller with 1/2″-thick steel blades. Dynamically balanced to reduce vibration, extend lifespan, and minimise engine stress, these loaders feature a powerful, debris-reducing design with high-output.
SMART CONSTRUCTION AND CONVENIENT SERVICEABILITY
EASY ACCESS FOR SIMPLE SERVICING
A 1/4″-thick, bolt-in, replaceable wear liner extends the unit’s service life. The removable rear-housing cover provides easy access to the impeller and wear plates making routine maintenance quicker and more efficient.

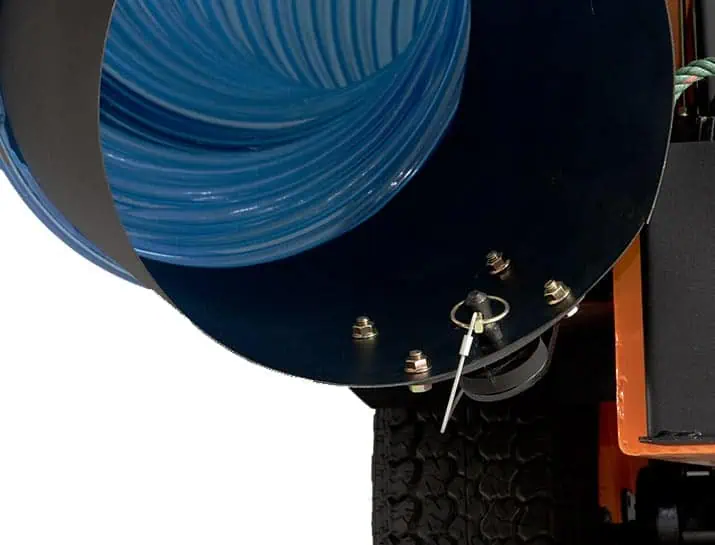

LOCKING BOOM ARM AND INTAKE NOZZLE
SAFE AND CONVENIENT TRANSPORT
The transport lock safely secures the boom arm and hose when not in use, while a nylon bearing ensures smooth movement. A transport pin locks the nozzle to the loader, protecting the hose during transit. For added convenience, the quick-detach hose allows for fast and easy transport, storage, and cleaning.

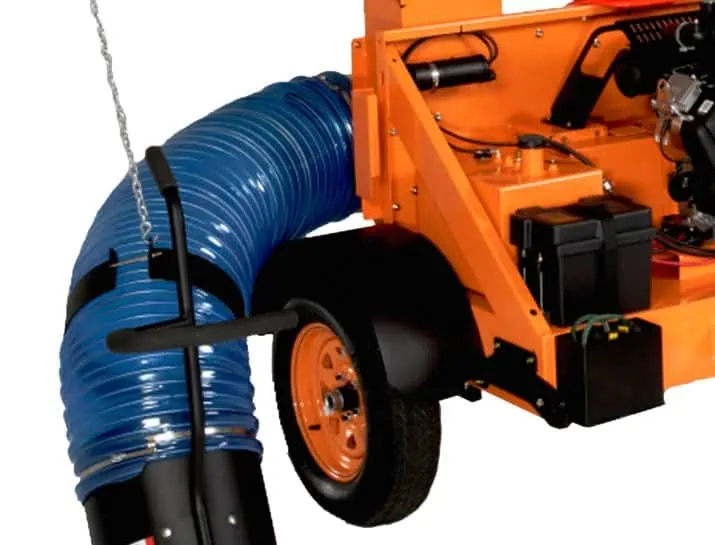

AMBIDEXTROUS NOZZLE HANDLE
EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS
The padded, large-diameter handle is designed for increased leverage and smooth manoeuvrability, giving operators comfortable control whether working from the left or right side.

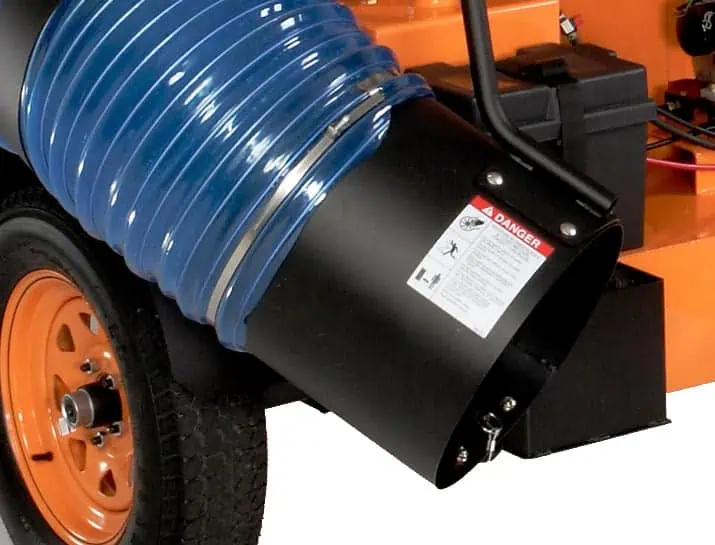

16" STEEL INTAKE NOZZLE
TAKE IT ALL IN
The huge, replaceable 16" intake nozzle makes debris pickup easy, helping you clear surfaces quickly and efficiently.

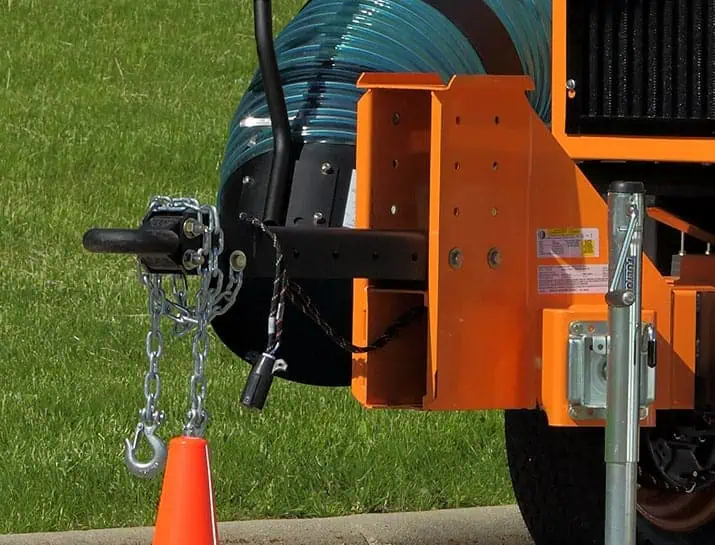

ADJUSTABLE TONGUE AND HITCH
VERSATILE MOUNTING OPTIONS
Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit your vehicle. A 2 5/16″ ball coupler comes standard on the petrol-powered units, but will accept a pintle hitch. Diesel-powered unit comes with standard pintle hitch, but will accept a 2 5/16″ ball coupler.

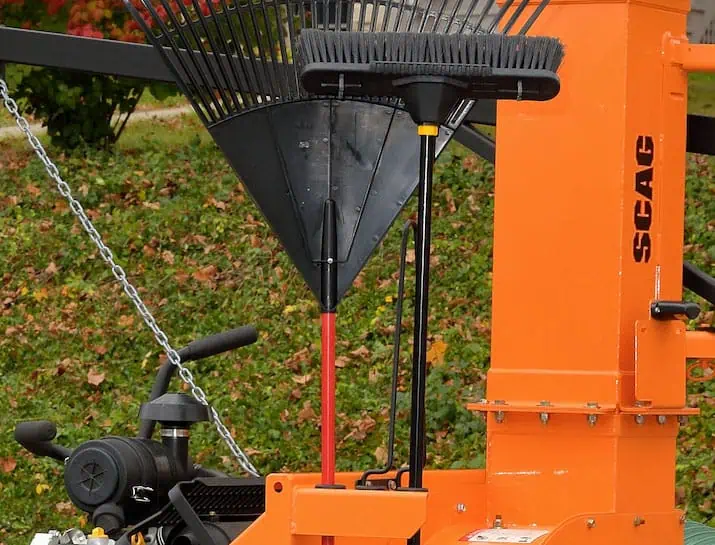

BUILT-IN TOOL HOLDER
KEEP YOUR RAKES, BROOMS AND SHOVELS WITHIN EASY REACH
Built-in, 3-hole tool holder with rubber rings protects handles from damage.
LARGE FUEL TANK WITH BUILT-IN GAUGE
HOURS AND HOURS OF RUN TIME
Stay productive with this durable, high-volume fuel tank. Designed with a large filler neck for quick and easy refueling, it minimises downtime and mess. The built-in fuel gauge provides real-time fuel level monitoring, eliminating guesswork and enhancing convenience on the job.

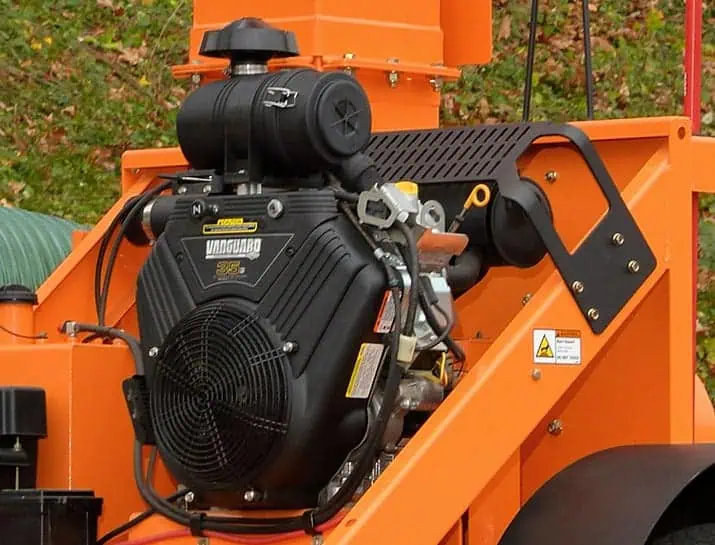

POWERFUL ENGINE OPTIONS
HUGE POWER, UP TO 29HP
Select the performance level that matches your toughest demands: 35 hp Vanguard® BIG BLOCK™ – Rugged and reliable for heavy-duty applications. 37 hp Kohler® Command PRO® – High-performance gasoline engine with proven durability. 49 hp Kubota® Diesel – Maximum torque and fuel efficiency for industrial-grade power.
Industrial Tow-Behind Specifications
| MODEL | TL20W-29BV | TLB25-37CH | TLB25-49KBD |
| RRP INC-GST | $28,710 | $30,030 |
$65,450 |
| GENERAL | |||
| Engine | Briggs & Stratton Vanguard Big Block | Kohler Command Pro | Kubota Diesel |
| Horsepower | 35 hp | 37 hp | 49 hp |
| Fuel Tank Capacity | 32.18 Litres | 32.18 Litres | 32.18 Litres |
| Output, m3/min | 192.02 | 195.64 | 207.22 |
| Frame Construction | All-steel, welded | All-steel, welded | All-steel, welded |
| Impeller Construction | 4-blade, 1/2″-thick blades, all-steel, welded | 4-blade, 1/2″-thick blades, all-steel, welded | 4-blade, 1/2″-thick blades, all-steel, welded |
| Impeller Mounting | Straight bore | Straight bore | Straight bore |
| Impleller Diameter/ Width | 25″ / 63.5 cm 9″ / 22.86 cm |
25″ / 63.5 cm 9″ / 22.86 cm |
25″ / 63.5 cm 9″ / 22.86 cm |
| Blower Housing Construction | Removable back panel for easy impeller and wear plate access | Removable back panel for easy impeller and wear plate access | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 10.5″/ 26.67 cm | 10.5″/ 26.67 cm | 10.5″/ 26.67 cm |
| Blower Housing Wear Plates | Standard: 1/4″-steel, replaceable | Standard: 1/4″-steel, replaceable | Standard: 1/4″-steel, replaceable |
| Hose Specifications | 84″ / 213.36cm length, 16″ / 40.64cm diameter intake hose 0.045 black thermoplastic rubber, wire helix with wearstrip |
84″ / 213.36cm length, 16″ / 40.64cm diameter intake hose 0.045 black thermoplastic rubber, wire helix with wearstrip |
84″ / 213.36cm length, 16″ / 40.64cm diameter intake hose 0.045 black thermoplastic rubber, wire helix with wearstrip |
| Unit Mounting | Hitch: at least 10,000 lb rating | Hitch: at least 10,000 lb rating | Hitch: at least 10,000 lb rating |
| Discharge Tube | Clear thermoplastic, 12″ / 30.48cm diameter 84″ / 213.36cm length |
Clear thermoplastic, 12″ / 30.48cm diameter 84″ / 213.36cm length |
Clear thermoplastic, 12″ / 30.48cm diameter 84″ / 213.36cm length |
| Throttle Control | Commercial-grade, all-steel mechanicals | Commercial-grade, all-steel mechanicals | Commercial-grade, all-steel mechanicals |
| Axle | Heavy-duty Dexter Torflex® axle (3,500 lb) | Heavy-duty Dexter Torflex® axle (3,500 lb) | Heavy-duty Dexter Torflex® axle (3,500 lb) |
| Tyres | 205 / 75 D15 highway tires with steel wheels | 205 / 75 D15 highway tires with steel wheels | 205 / 75 D15 highway tires with steel wheels |
| Trailer Width | 66.75″/ 169.55 cm | 66.75″/ 169.55 cm | 66.75″/ 169.55 cm |
| PRODUCT DIMENSIONS (approximate) | |||
| Height | 121.25″/ 307.98 cm | 121.25″/ 307.98 cm | 121.25″/ 307.98 cm |
| Weight | 771.11 kg | 771.11 kg | 771.11 kg |
NOTE: Images shown are for illustrational purposes only, actual product may vary. Specifications subject to change. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
