Stand-on Mowers
V-Ride II
GO THE DISTANCE
Featuring a comfortable operator platform with first- class suspension that minimizes fatigue, the V-Ride II delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.
From $90.23 / week
RRP
$90.23 / week
Actual product may differ from photos.
THE ENVY OF THE NEIGHBORHOOD
48" , 52" OR 61" CUT WIDTH
The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48′′, 52′′ and 61′′ widths. An Advantage Cutter Deck is featured on models with 32′′ and 36′′ cutting widths.
OGURA PTO CLUTCH BRAKE
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
ADJUSTABLE OPERATOR PLATFORM
UNMATCHED, ULTRA- COMFORTABLE RIDE
The spacious operator platform delivers a smooth ride and reduces operator fatigue. Adjustable suspension spring can be moved forward or backward, with, or without, the spacer plate installed to meet the operator’s comfort preference. Extra-large, extra-thick operator comfort cushion ensures comfortable operation, hour after hour.
CUTTER-DECK LIFT SYSTEM
CONVENIENT, SPRING- ASSISTED LEVER
Cutter deck can be lifted and locked into transport position from the operator’s station. Cutting heights are easily set by placing the tethered pin at the desired height.
HIGH-STRENGTH STEEL FRAME
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.

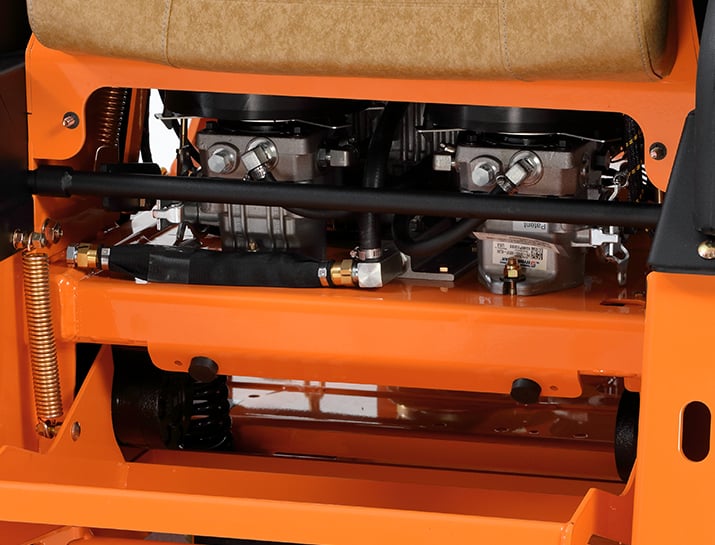

INDUSTRIAL-GRADE HYDRAULIC SYSTEM
TOP-CLASS PERFORMANCE
48″, 52″ and 61″ models: Dual Hydro-Gear pumps (12 cc) and Parker wheel motors (14 ci) deliver dependable power, with speeds up to 17km/h. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures. 32″ and 36″ models: Dual Hydro-Gear pumps (10 cc) and Parker wheel motors (12 ci) deliver dependable power, with speeds up to 13.5km/h.
EASE OF MAINTENANCE
MORE UPTIME
Easy-to-remove covers, an unrestricted engine compartment, easy-to-reach grease Zerks and many more features make servicing the V-Ride™ II simple, so you can be in the shop less and on the job more.

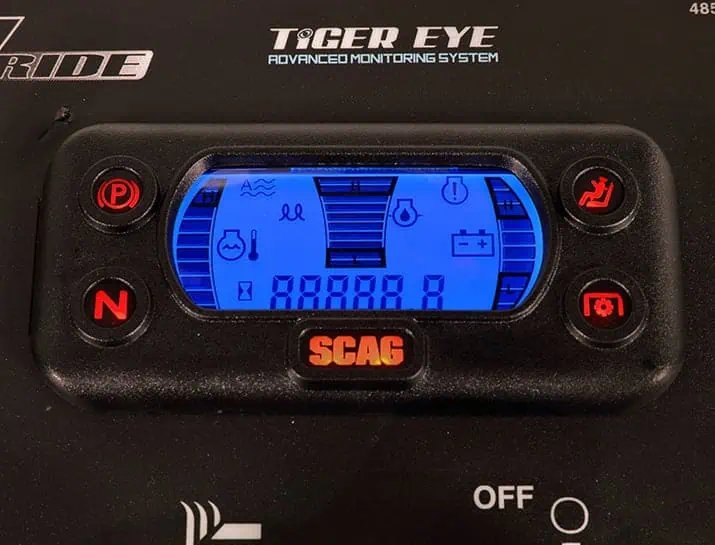

TIGER EYE ADVANCED MONITORING SYSTEM
KEEP A REAL-TIME "EYE" ON SYSTEM FUNCTIONS
Depending on the mower model and engine selection, the Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat. Tiger Eye not available on 32′′ and 36′′ V-Ride II models.
V-Ride II Specifications
| MODEL | SVRII-32A-16FX | SVRII-32A-23BV | SVRII-36A-19FX | SVRII-48V-22FX | SVRII-52V-26FT-EFI | SVRII-52V-37BV-EFI | SVRII-61V-38FX-EFI |
| RRP INC-GST | $18,704 | $19,030 | $19,800 | $22,000 | $22,550 | $24,640 | $26,400 |
| GENERAL | |||||||
| Engine Brand | Kawasaki | Briggs & Stratton Vanguard | Kawasaki | Kawasaki | Kawasaki | Briggs & Stratton Vanguard | Kawasaki |
| Engine Model | FX541V | 38 | FX600V | FX691V | FT730V EFI | EFI 993 | FX1000 EFI |
| Horsepower | 16.5 hp | 23 hp | 19 hp | 22 hp | 26 hp | 37 hp | 38.5 hp |
| Displacement | 603 cc | 627 cc | 603 cc | 726 cc | 726 cc | 993 cc | 999 cc |
| Fuel Tank Capacity | 19 litres | 19 litres | 25 litres | 30 litres | 30 litres | 30 litres | 30 litres |
| Productivity, acres/day | 12.4 | 12.4 | 14 | 18.6 | 20.2 | 20.2 | 23.7 |
| Tyre Sizes | 11″ x 4-5″ Flat-free Front 20″ x 6.5″ -10″ Rear |
11″ x 4-5″ Flat-free Front 20″ x 6.5″ -10″ Rear |
11″ x 4-5″ Flat-free Front 20″ x 8″ -10″ Rear |
13″ x 5-6″ Flat-free Front 24″ x 9.5-12″ Rear |
13″ x 5-6″ Flat-free Front 24″ x 9.5-12″ Rear |
13″ x 5-6″ Flat-free Front 24″ x 9.5-12″ Rear |
13″ x 6.5-6″ Flat-free Front 24″ x 12-12″ Rear |
| Waranty Period | 5-YR Residential 5-YR Commercial |
5-YR Residential 5-YR Commercial |
5-YR Residential 5-YR Commercial |
5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
| DRIVE SYSTEM | |||||||
| Type | Dual Pump and Motor | Dual Pump and Motor | Dual Pump and Motor | Dual Pump and Motor | Dual Pump and Motor | Dual Pump and Motor | Dual Pump and Motor |
| Pumps | Hydro-Gear 10 cc | Hydro-Gear 10 cc | Hydro-Gear 10 cc | Hydro-Gear 12 cc | Hydro-Gear 12 cc | Hydro-Gear 12 cc | Hydro-Gear 12 cc |
| Motors | Parker 12 ci | Parker 12 ci | Parker 14 ci | Parker 14 ci | Parker 14 ci | Parker 14 ci | Parker 14 ci |
| Forward Speed | 13.5 km/h | 13.5 km/h | 13.5 km/h | 17 km/h | 17 km/h | 17 km/h | 17 km/h |
| Reverse Speed | 8 km/h | 8 km/h | 8 km/h | 8 km/h | 8 km/h | 8 km/h | 8 km/h |
| Parking Brake | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels |
| CUTTER DECK | |||||||
| Type | Advantage Deck | Advantage Deck | Advantage Deck | Velocity Plus | Velocity Plus | Velocity Plus | Velocity Plus |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. |
| Spindles | Cast-iron housing with tapered roller bearings. | Cast-iron housing with tapered roller bearings. | Cast-iron housing with tapered roller bearings. | Cast-iron housing with tapered roller bearings. | Cast-iron housing with tapered roller bearings. | Cast-iron housing with tapered roller bearings. | Cast-iron housing with tapered roller bearings. |
| Cutting Width | 32″ / 81cm | 32″ / 81cm | 36″ / 91cm | 48″ / 122cm | 52″ / 132cm | 52″ / 132cm | 61″ / 155cm |
| Cutting Height Adjustment | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments |
| Deck Lift | Hand lever | Hand lever | Hand lever | Hand lever | Hand lever | Hand lever | Hand lever |
| Blades | 2 x 16.5″ | 2 x 16.5″ | 2 x 18″ | 3 x 16.5″ | 3 x 18″ | 3 x 18″ | 3 x 21″ |
| Clutch / Blade Engagement | ORGUA GT2.5 (150ft lb) Adjustable Air Gap |
ORGUA GT2.5 (150ft lb) Adjustable Air Gap |
ORGUA GT2.5 (150ft lb) Adjustable Air Gap |
ORGUA GT2.5 (150ft lb) Adjustable Air Gap |
ORGUA GT2.5 (150ft lb) Adjustable Air Gap |
ORGUA GT3.5 (250ft lb) Adjustable Air Gap |
ORGUA GT3.5 (250ft lb) Adjustable Air Gap |
| Discharge Opening | Side-discharge | Side-discharge | Side-discharge | Side-discharge | Side-discharge | Side-discharge | Side-discharge |
| PRODUCT DIMENSIONS (approximate) | |||||||
| Length | 65.25″ / 165.74 cm | 65.25″ / 165.74 cm | 65.25″ / 165.74 cm | 67.5″ / 171.45 cm | 69.5″ / 176.53 cm | 69.5″ / 176.53 cm | 72.75″ / 184.79 cm |
| Width (chute down) | 32″ / 81.28 cm | 32″ / 81.28 cm | 36″ / 91.44 cm | 48″ / 121.92 cm | 48″ / 121.92 cm | 48″ / 121.92 cm | 48″ / 121.92 cm |
| Width (chute in transport position) | 43″ / 109.22 cm | 43″ / 109.22 cm | 47.75″ / 121.23 cm | 61.25″ / 155.58 cm | 65.25″ / 165.74 cm | 65.25″ / 165.74 cm | 73.5″ / 186.69 cm |
| Height (ROPS folded) | 33.75″ / 85.73 cm | 33.75″ / 85.73 cm | 37.25″ / 94.62 cm | 49.75″ / 126.37 cm | 53.75″ / 136.53 cm | 53.75″ / 136.53 cm | 62.75″ / 159.39 cm |
| Height (ROPS up) | 47″ / 119.38 cm | 47″ / 119.38 cm | 47″ / 119.38 cm | 47.25″ / 120.02 cm | 47.25″ / 120.02 cm | 47.25″ / 120.02 cm | 47.25″ / 120.02 cm |
| Weight | 371 kg | 371 kg | 377 kg | 455 kg | 467 kg | 467 kg | 514 kg |
NOTE: Images shown are for illustrational purposes only, actual product may vary. Specifications subject to change. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
