Zero Turn Mowers
Tiger Cat II
CLAIM YOUR TERRITORY.
The power of a tiger with the swiftness of a cat, the nimble Tiger Cat-II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly - putting you on the path toward increased profitability.
From $24,499.00 Incl.GST
RRP
$24,499.00 Incl.GST
Actual product may differ from photos.
THE ENVY OF THE NEIGHBORHOOD
48" , 52" OR 61" CUT WIDTH
The envy of the industry, Velocity PlusTM decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra- tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing
OGURA PTO CLUTCH BRAKE
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
The Ogura GT3.5 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 250 ft. lb. of holding strength, and an adjustable air gap for long life.
HIGH-STRENGTH STEEL FRAME
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.
INDUSTRIAL-GRADE HYDRAULIC SYSTEM
TOP PERFORMANCE
Dual Hydro-Gear pumps (12 cc) and Parker wheel motors (14.5 ci) deliver dependable power. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.
EASE OF MAINTENANCE
MORE UPTIME
Flip-up access panels, an unrestricted engine compartment, easy-to-reach grease zerks and many more features make servicing the Tiger Cat® simple, so you can be in the shop less and on the job more.
SUSPENSION SEAT
RIDE IN COMFORT
Torsion-spring suspension seat adjusts to each operator’s weight to provide superior comfort. Seat features full padding, forward/rearward adjustment, a high back, adjustable armrests and an adjustable back angle. The 4-point, rubber iso-mounting provides even more shock absorption, maximizing your comfort, hour after hour.
TIGER EYE ADVANCED MONITORING SYSTEM
KEEP A REAL-TIME "EYE" ON SYSTEM FUNCTIONS
Depending on the mower model and engine selection, the Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat.

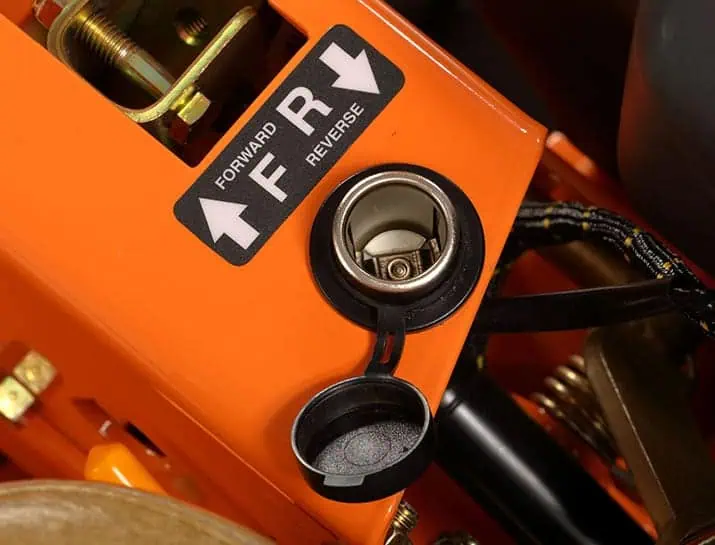

12-VOLT OUTLET
KEEP YOUR DEVICE CHARGED AND READY
12-volt outlet for added convenience allows operators to plug in small accessories or keep their phones at full charge.
POWERFUL AND EFFICIENT ENGINE OPTIONS
BIG POWER, UP TO 32 HP
Choose from a Kawasaki®, Briggs VanguardTM or Kohler® air-cooled engine; electronic fuel injection (EFI) options are available.
Tiger Cat II Specifications
| MODEL | STCII-48V-22FX | STCII-48V-23CV | STCII-52V-26FT-EFI | STCII-52V-25CV-EFI | STCII-61V-26FT-EFI | STCII-61V-36BV |
| RRP INC-GST | $24,499 | $24,499 | $25,499 | $25,499 | $26,499 | $27,500 |
| GENERAL | ||||||
| Engine Brand | Kawasaki | Kohler | Kawasaki | Kohler | Kawasaki | Briggs & Stratton Vanguard |
| Engine Model | FX691V | CV23 (CV680) | FT730V | ECV740 | FT730V | 36BV (6137) |
| Horsepower | 22 hp | 23 hp | 24 hp | 25 hp | 25 hp | 36 hp |
| Displacement | 726 cc | 674 cc | 726 cc | 747 cc | 726 cc | 896 cc |
| Fuel Tank Capacity | 36 Litres (Dual 18L tanks) | 36 Litres (Dual 18L tanks) | 36 Litres (Dual 18L tanks) | 36 Litres (Dual 18L tanks) | 36 Litres (Dual 18L tanks) | 36 Litres (Dual 18L tanks) |
| Productivity, acres/day | 18.6 | 18.6 | 20.2 | 20.2 | 23.7 | 23.7 |
| Tyre Sizes | 13″ x 5-6″ Flat-free Front 24″ x 9.5-12″ Rear |
13″ x 5-6″ Flat-free Front 24″ x 9.5-12″ Rear |
13″ x 5-6″ Flat-free Front 24″ x 9.5-12″ Rear |
13″ x 5-6″ Flat-free Front 24″ x 9.5-12″ Rear |
13″ x 6-1/2″ Flat-free Front 24″ x 12-12″ Rear |
13″ x 6-1/2″ Flat-free Front 24″ x 12-12″ Rear |
| Seat | Adjustable, padded torsion-spring suspension seat with arm rests | Adjustable, padded torsion-spring suspension seat with arm rests | Adjustable, padded torsion-spring suspension seat with arm rests | Adjustable, padded torsion-spring suspension seat with arm rests | Adjustable, padded torsion-spring suspension seat with arm rests | Adjustable, padded torsion-spring suspension seat with arm rests |
| ROPS | Standard, Folding | Standard, Folding | Standard, Folding | Standard, Folding | Standard, Folding | Standard, Folding |
| Waranty Period | 5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
| DRIVE SYSTEM | ||||||
| Type | Dual Pump and Motor | Dual Pump and Motor | Dual Pump and Motor | Dual Pump and Motor | Dual Pump and Motor | Dual Pump and Motor |
| Pumps | Hydro-Gear 12 cc | Hydro-Gear 12 cc | Hydro-Gear 12 cc | Hydro-Gear 12 cc | Hydro-Gear 12 cc | Hydro-Gear 12 cc |
| Motors | Parker 14.5 ci | Parker 14.5 ci | Parker 14.5 ci | Parker 14.5 ci | Parker 14.5 ci | Parker 14.5 ci |
| Forward Speed | 19 km/h | 19 km/h | 19 km/h | 19 km/h | 19 km/h | 19 km/h |
| Reverse Speed | 8 km/h | 8 km/h | 8 km/h | 8 km/h | 8 km/h | 8 km/h |
| Parking Brake | FOOT PEDAL ACTIVATED linkage to brakes on both rear wheels | FOOT PEDAL ACTIVATED linkage to brakes on both rear wheels | FOOT PEDAL ACTIVATED linkage to brakes on both rear wheels | FOOT PEDAL ACTIVATED linkage to brakes on both rear wheels | FOOT PEDAL ACTIVATED linkage to brakes on both rear wheels | FOOT PEDAL ACTIVATED linkage to brakes on both rear wheels |
| CUTTER DECK | ||||||
| Type | Velocity Plus Deck | Velocity Plus Deck | Velocity Plus Deck | Velocity Plus Deck | Velocity Plus Deck | Velocity Plus Deck |
| Construction | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. |
| Spindles | Cast-iron housing with tapered roller bearings | Cast-iron housing with tapered roller bearings | Cast-iron housing with tapered roller bearings | Cast-iron housing with tapered roller bearings | Cast-iron housing with tapered roller bearings | Cast-iron housing with tapered roller bearings |
| Cutting Width | 48″ / 122 cm | 48″ / 122 cm | 52″ / 132 cm | 52″ / 132 cm | 61″ / 155 cm | 61″ / 155 cm |
| Cutting Height Adjustment | 1″ to 5″ in .25″ increments | 1″ to 5″ in .25″ increments | 1″ to 5″ in .25″ increments | 1″ to 5″ in .25″ increments | 1″ to 5″ in .25″ increments | 1″ to 5″ in .25″ increments |
| Deck Lift | Foot-operated pedal | Foot-operated pedal | Foot-operated pedal | Foot-operated pedal | Foot-operated pedal | Foot-operated pedal |
| Blades | 3 x 18″ | 3 x 21″ | 3 x 18″ | 3 x 21″ | 3 x 18″ | 3 x 21″ |
| Clutch / Blade Engagement | ORGUA GT3.5 (250ft lb) Adjustable Air Gap |
ORGUA GT3.5 (250ft lb) Adjustable Air Gap |
ORGUA GT3.5 (250ft lb) Adjustable Air Gap |
ORGUA GT3.5 (250ft lb) Adjustable Air Gap |
ORGUA GT3.5 (250ft lb) Adjustable Air Gap |
ORGUA GT3.5 (250ft lb) Adjustable Air Gap |
| Discharge Opening | Side-discharge | Side-discharge | Side-discharge | Side-discharge | Side-discharge | Side-discharge |
| PRODUCT DIMENSIONS (approximate) | ||||||
| Length | 80″ / 203.2 cm | 80″ / 203.2 cm | 80″ / 203.2 cm | 80″ / 203.2 cm | 80″ / 203.2 cm | 80″ / 203.2 cm |
| Width (chute down) | 60.5″ / 153.67 cm | 60.5″ / 153.67 cm | 64.5″ / 163.83 cm | 64.5″ / 163.83 cm | 73.5″ / 186.69 cm | 73.5″ / 186.69 cm |
| Width (chute in transport position) | 49.75″ / 126.37 cm | 49.75″ / 126.37 cm | 53.75″ / 136.53 cm | 53.75″ / 136.53 cm | 62.75″ / 159.39 cm | 62.75″ / 159.39 cm |
| Height (ROPS folded) | 46.75″ / 118.75 cm | 46.75″ / 118.75 cm | 46.75″ / 118.75 cm | 46.75″ / 118.75 cm | 46.75″ / 118.75 cm | 46.75″ / 118.75 cm |
| Height (ROPS up) | 67.25″ / 170.82 cm | 67.25″ / 170.82 cm | 67.25″ / 170.82 cm | 67.25″ / 170.82 cm | 67.25″ / 170.82 cm | 67.25″ / 170.82 cm |
| Weight | 531 kg | 531 kg | 532 kg | 532 kg | 597 kg | 579 kg |
NOTE: Images shown are for illustrational purposes only, actual product may vary. Specifications subject to change. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
