Zero Turn Mowers

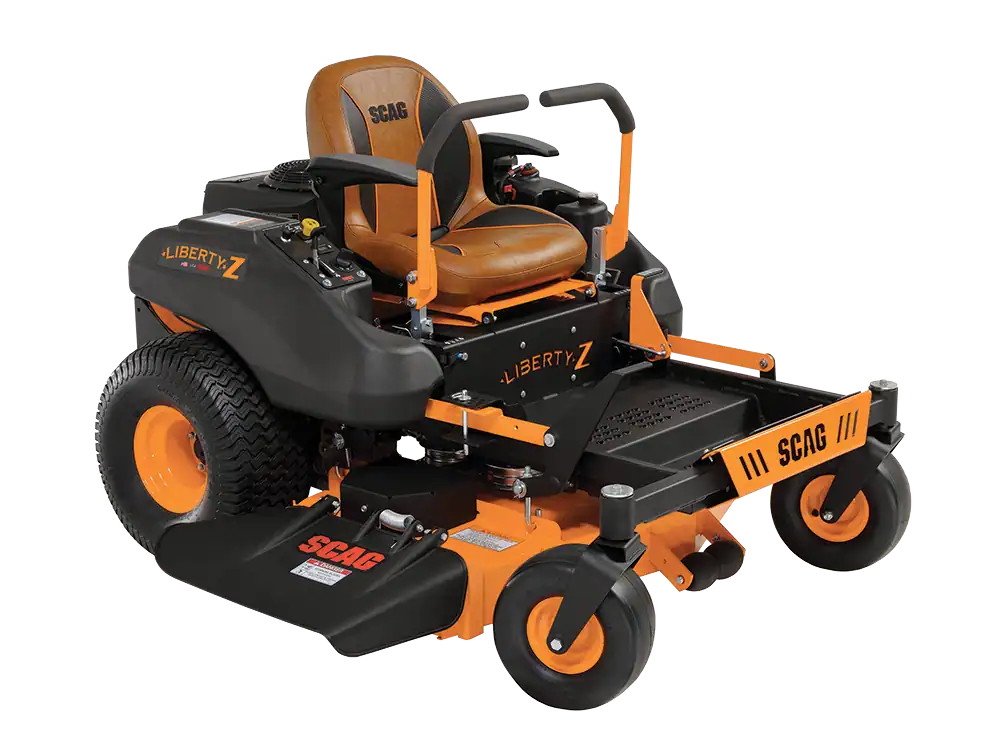

Liberty Z
COME HOME TO THE BEST.
Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.
From $54.75 / week
RRP
$54.75 / week
Actual product may differ from photos.
OGURA PTO CLUTCH BRAKE
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
COMMAND PERFECTION
DEEP, FABRICATED, AND WELDED CUTTER DECKS
Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.

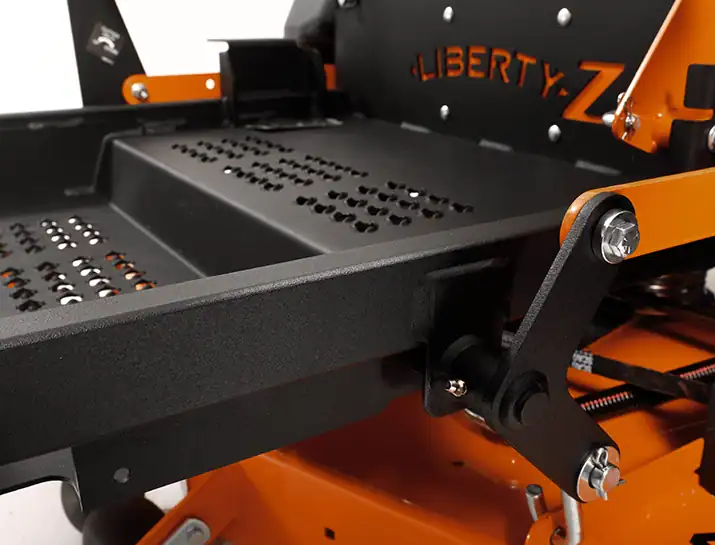

HIGH-STRENGTH STEEL FRAME
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Tubular-steel main frame delivers unmatched strength and longevity.
LOW-MAINTENANCE MOWER DESIGN
MORE UPTIME
Fewer grease points increase operator convenience and ease-of-ownership.

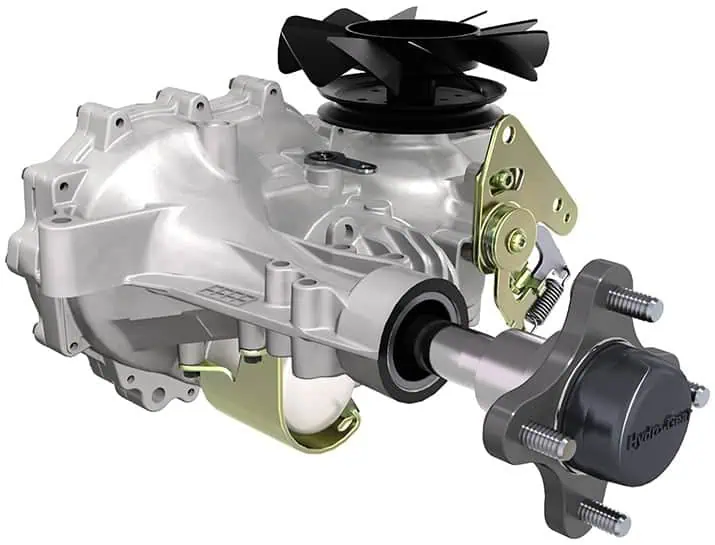

PROVEN TRANSAXLES
SPEEDS UP TO 11.3KM/H
The Liberty Z features proven, dual hydro transaxles for smooth, solid power to the drive wheels. Tuff Torq TZ450, or Hydro-Gear ZT-2800 or ZT-3100 transaxles, depending on model.
CONTOURED, BOLSTERED, HIGH-BACK SEAT
RIDE IN COMFORT
This seat is ultra-comfortable and adjustable (with tools), contoured for improved comfort, and features armrests*. * Armrests are standard on 48″, 52″ and 61″ models. An optional armrest kit is available for 36″ and 42″ models.

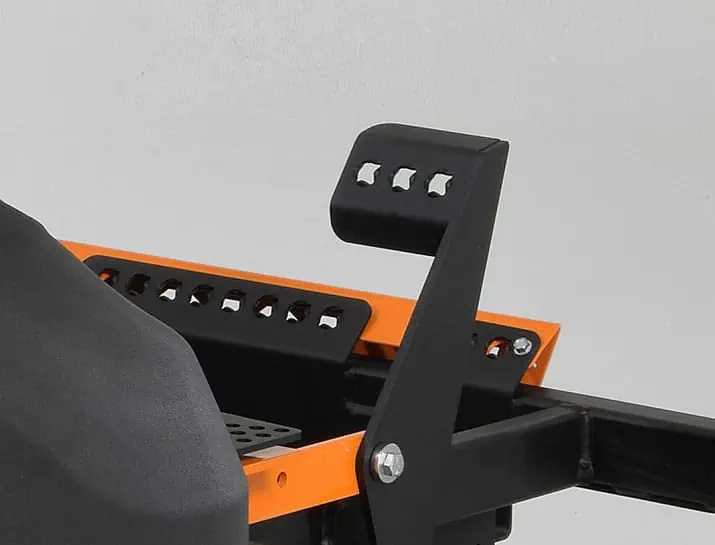

EASY FOOT-PEDAL DECK LIFT
EASY UP, EASY DOWN
Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.

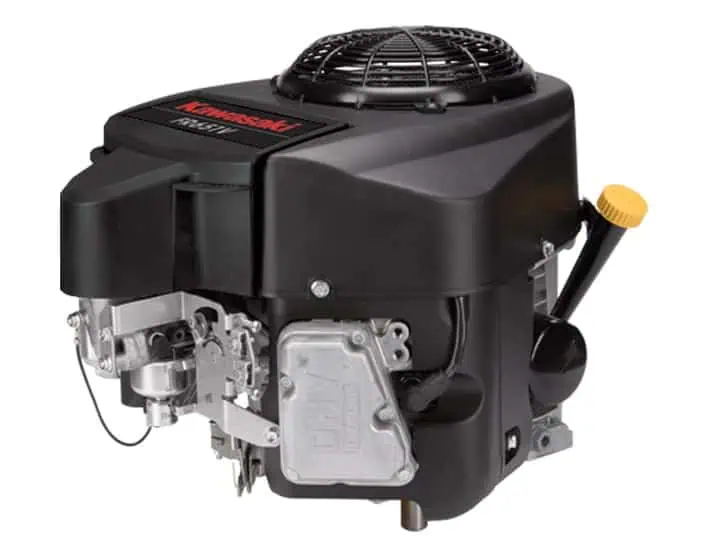

POWERFUL AND EFFICIENT ENGINE OPTIONS
RELIABLE POWER
Reliable and proven air-cooled, Kawasaki FR V-twin engine options from 18hp to 24hp to help you get the job done.
Liberty Z Specifications
| MODEL | SZL-36H-18FR | SZL-42H-21FR | SZL-48H-21FR | SZL-52H-23FR | SZL-61H-24FR |
| RRP INC-GST | $11,350 | $11,849 | $12,126 | $12,850 | $13,499 |
| GENERAL | |||||
| Engine Brand | Kawasaki | Kawasaki | Kawasaki | Kawasaki | Kawasaki |
| Engine Model | FR600V | FR651V | FR651V | FR691V | FR760V |
| Horsepower | 18 hp | 21 hp | 21 hp | 23 hp | 24 hp |
| Displacement | 603 cc | 726 cc | 726 cc | 726 cc | 726cc |
| Fuel Tank Capacity | 13 Litres | 13 Litres | 20 Litres | 20 Litres | 20 Litres |
| Productivity, acres/day | 14 | 16 | 18.6 | 20.2 | 23.6 |
| Tyre Sizes | 20″ x 8″-10″ Rear 11″ x 4″ x 5″ Front Inflateable |
20″ x 8″-10″ Rear 11″ x 4″ x 5″ Front Inflateable |
20′ x 10′ x 10′ Rear 11′ x 6′ x 5″ Front Inflateable |
20′ x 10′ x 10′ Rear 11′ x 6′ x 5″ Front Inflateable |
20′ x 10′ x 10′ Rear 11′ x 6′ x 5″ Front Inflateable |
| Seat | PADDED SEAT, adjustable forward and back with tools | PADDED SEAT, adjustable forward and back with tools | PADDED SEAT, WITH ARM REST adjustable forward and back with tools | PADDED SEAT, WITH ARM REST adjustable forward and back with tools | PADDED SEAT, WITH ARM REST adjustable forward and back with tools |
| ROPS | N/A | N/A | N/A | N/A | N/A |
| Waranty Period | 5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
| DRIVE SYSTEM | |||||
| Type | HYDRO GEAR ZT-2800 | HYDRO GEAR ZT-2800 | TUFF TORQ TZ450 | TUFF TORQ TZ450 | TUFF TORQ TZ450 |
| Internal Pumps | 10 cc | 10 cc | 10 cc | 10 cc | 10 cc |
| Internal Motor | 16 cc | 16 cc | 10 cc | 10 cc | 10 cc |
| Forward Speed | 11.3 km/h | 11.3 km/h | 11.3 km/h | 11.3 km/h | 11.3 km/h |
| Reverse Speed | 8 km/h | 8 km/h | 8 km/h | 8 km/h | 8 km/h |
| Parking Brake | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels |
| CUTTER DECK | |||||
| Type | Hero Deck | Hero Deck | Hero Deck | Hero Deck | Hero Deck |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Spindles | Aluminum housing with sealed ball bearings. | Aluminum housing with sealed ball bearings. | Aluminum housing with sealed ball bearings. | Aluminum housing with sealed ball bearings. | Aluminum housing with sealed ball bearings. |
| Cutting Width | 36″ / 91 cm | 42″ / 107 cm | 48″ / 122 cm | 52″ / 132 cm | 61″ / 155 cm |
| Cutting Height Adjustment | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments |
| Deck Lift | Foot-operated pedal | Foot-operated pedal | Foot-operated pedal | Foot-operated pedal | Foot-operated pedal |
| Blades | 2 x 18″ | 3 x 14.75″ | 3x 16.5″ | 3 x 18″ | 3 x 21″ |
| Clutch / Blade Engagement | ORGUA GT1 (74FT LB) Adjustable Air Gap |
ORGUA GT1 (74FT LB) Adjustable Air Gap |
ORGUA GT1 (74FT LB) Adjustable Air Gap |
ORGUA GT1 (74FT LB) Adjustable Air Gap |
ORGUA GT2 (108FT LB) Adjustable Air Gap |
| Discharge Opening | Side-discharge | Side-discharge | Side-discharge | Side-discharge | Side-discharge |
| PRODUCT DIMENSIONS (approximate) | |||||
| Length | 68.5″ / 173.99 cm | 68.5″ / 173.99 cm | 67.5″ / 171.45 cm | 67.5″ / 171.45 cm | 73.5″ / 186.69 cm |
| Width (chute down) | 48.5″ / 123.19 cm | 54.5″ / 138.43 cm | 60.5″ / 153.67 cm | 64.5″ / 163.83 cm | 73.5″ / 186.69 cm |
| Width (chute in transport position) | 37″ / 93.98 cm | 43″ / 109.22 | 49″ / 124.46 cm | 53″ / 134.62 cm | 62″ / 157.48 cm |
| Height | 40″ / 101.6 cm | 41″ / 104.14 cm | 41″ / 104.14 cm | 41″ / 104.14 cm | 41″ / 104.14 cm |
| Weight | 250 kg | 263 kg | 278 kg | 293 kg | 315 kg |
NOTE: Images shown are for illustrational purposes only, actual product may vary. Specifications subject to change. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
