Truck Loaders
Tow-Behind
NEVER BACK DOWN
Featuring two engine options, and a two-year warranty, the Scag Tow-Behind Truck Loader delivers peace of mind for operators that need a machine that can keep up with them. Designed firstmost with durability in mind, the Tow- Behind Truck Loader can handle whatever a job throws at it. Simply put, this machine is built to keep going and going.
From $88.62 / week
RRP
$88.62 / week
Actual product may differ from photos.
4-BLADE IMPELLER
FABRICATED AND BALANCED
Inside the unit’s 7.5′′-wide housing is a welded-steel impeller with 3/8′′-thick steel blades. Dynamically balanced to reduce vibration, extend lifespan, and minimise engine stress, these loaders feature a powerful, debris-reducing design with high-output of up to 132.52 cubic metres per minute.

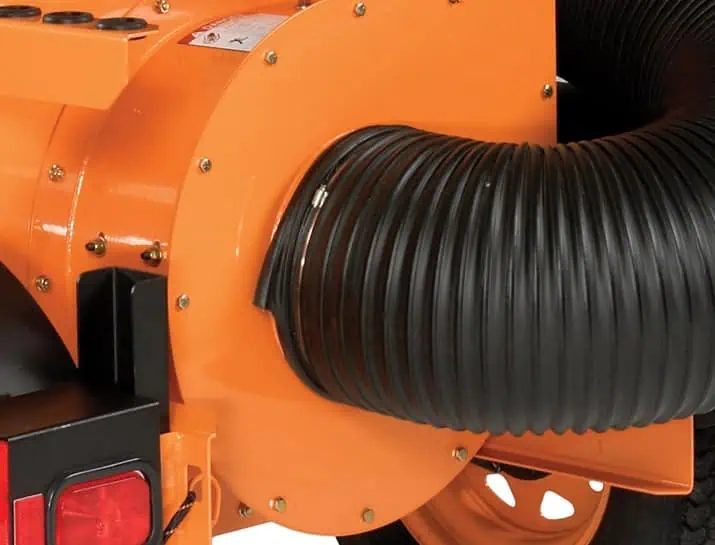

SMART CONSTRUCTION AND CONVENIENT SERVICEABILITY
EASY ACCESS FOR SIMPLE SERVICING
A 1/4′′-thick, bolt-in, replaceable wear liner extends the unit’s service life. The removable rear-housing cover provides easy access to the impeller and wear plates making routine maintenance quicker and more efficient.

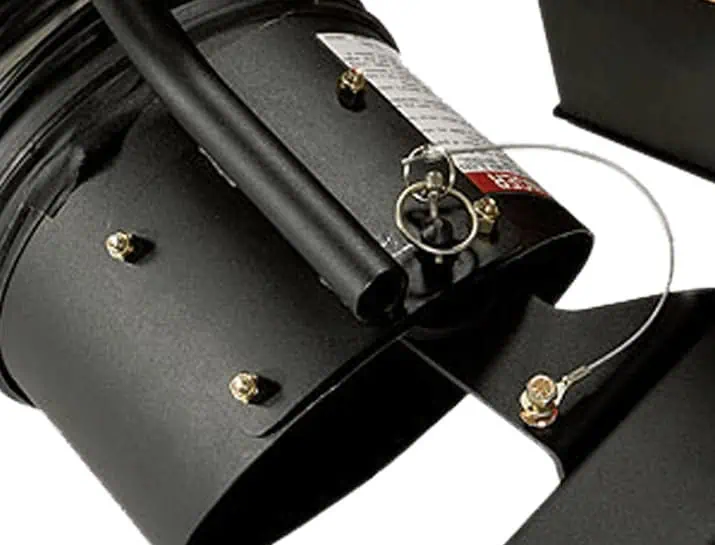

LOCKING BOOM ARM AND INTAKE NOZZLE
SAFE AND CONVENIENT TRANSPORT
The transport lock safely secures the boom arm and hose when not in use, while a nylon bearing ensures smooth movement. A transport pin locks the nozzle to the loader, protecting the hose during transit. For added convenience, the quick-detach hose allows for fast and easy transport, storage, and cleaning.

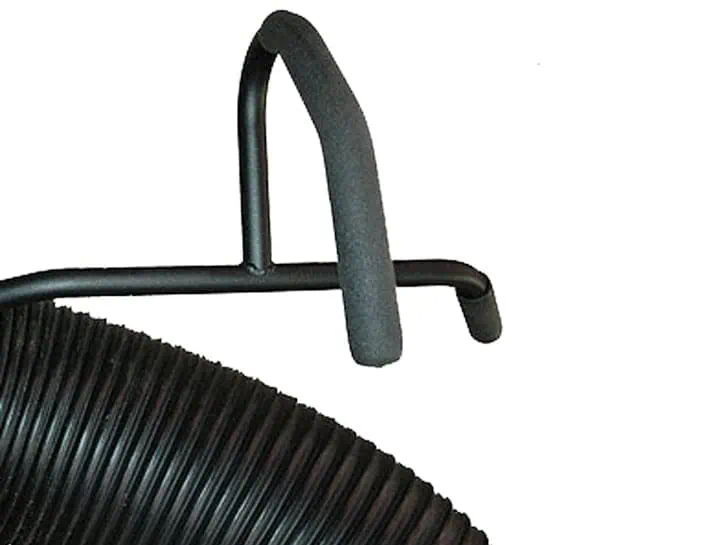

AMBIDEXTROUS NOZZLE HANDLE
EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS
The padded, large-diameter handle is designed for increased leverage and smooth manoeuvrability, giving operators comfortable control whether working from the left or right side.

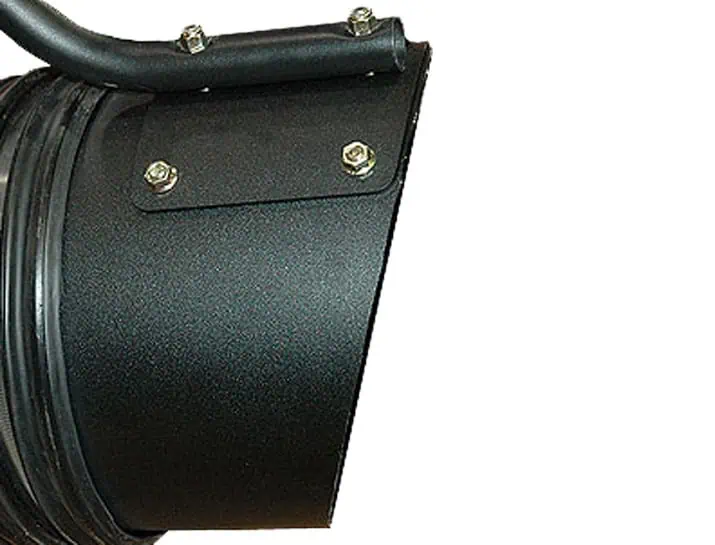

12" STEEL INTAKE NOZZLE
TAKE IT ALL IN
Inside the unit’s 7.5′′-wide housing is a welded-steel impeller with 3/8′′-thick steel blades. Dynamically balanced to reduce vibration, extend lifespan, and minimise engine stress, these loaders feature a powerful, debris-reducing design with high-output of up to 132.52 cubic metres per minute.

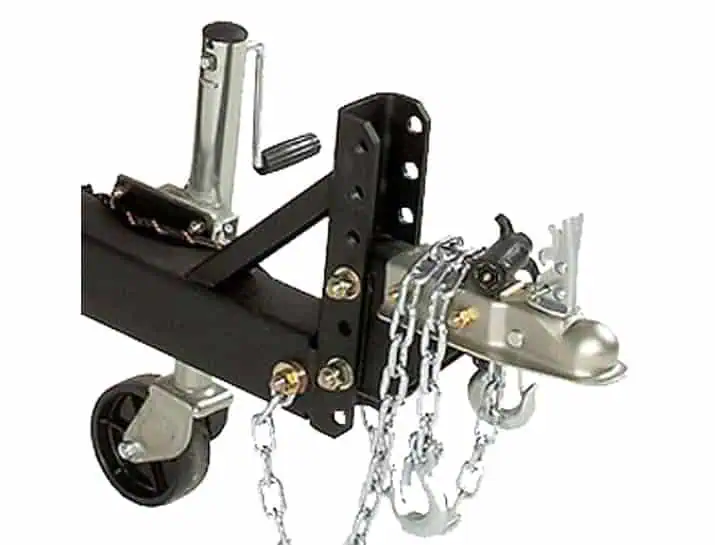

ADJUSTABLE TONGUE AND HITCH
VERSATILE MOUNTING OPTIONS
Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit to your vehicle. Standard 2′′ ball coupler will also accept a 2 5/16′′ ball or pintle hitch.

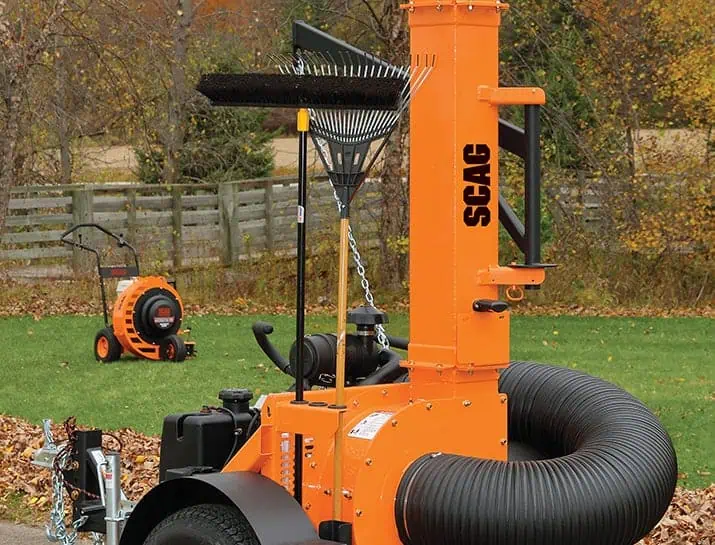

BUILT-IN TOOL HOLDER
KEEP YOUR RAKES, BROOMS AND SHOVELS WITHIN EASY REACH
Built-in, 3-hole tool holder with rubber rings protects handles from damage.

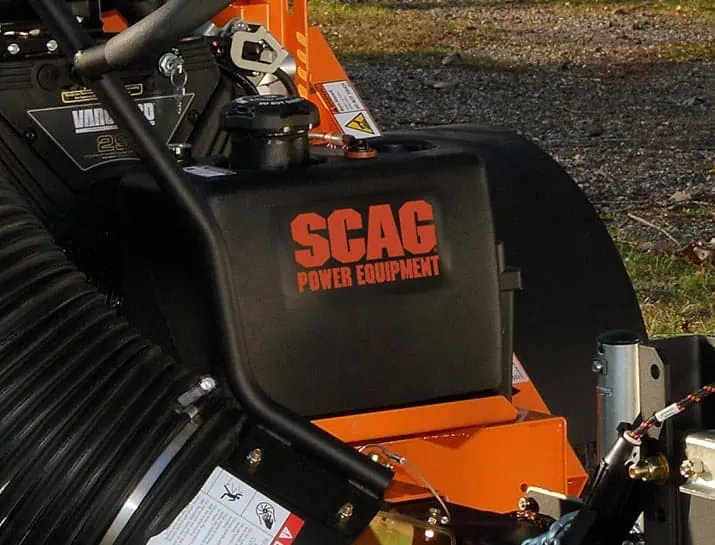

LARGE FUEL TANK WITH BUILT-IN GAUGE
HOURS AND HOURS OF RUN TIME
Stay productive with this durable, high-volume fuel tank. Designed with a large filler neck for quick and easy refueling, it minimises downtime and mess. The built-in fuel gauge provides real-time fuel level monitoring, eliminating guesswork and enhancing convenience on the job.

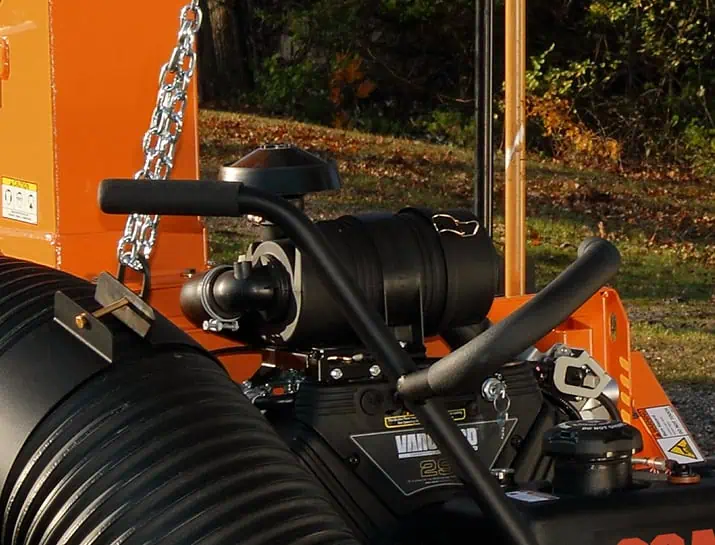

POWERFUL ENGINE OPTIONS
HUGE POWER, UP TO 29HP
Choose the power that suits your needs: 26.5 hp Kohler® Command PRO® EFI – Fuel- efficient, reliable performance with electronic fuel injection for smoother operation. 29 hp Vanguard® BIG BLOCK™ – High-output petrol engine built for demanding tasks and extended durability.
Tow-Behind Specifications
| MODEL | TL20W-29BV | TL20W-26CH-EFI |
| RRP INC-GST | $18,370 | $19,140 |
| GENERAL | ||
| Engine | Briggs & Stratton Vanguard | Kohler Command Pro EFI |
| Horsepower | 29 hp | 26.5 hp |
| Fuel Tank Capacity | 20.82 Litres | 20.82 Litres |
| Output, m3/min | 132.52 | 132.52 |
| Frame Construction | All-steel, welded | All-steel, welded |
| Impeller Construction | 4-blade, 3/8″-thick blades, all-steel, welded | 4-blade, 3/8″-thick blades, all-steel, welded |
| Impeller Mounting | Tapered locking hub | Tapered locking hub |
| Impleller Diameter/ Width | 20″ / 50.8 cm 6.5″ / 16.51 cm |
20″ / 50.8 cm 6.5″ / 16.51 cm |
| Blower Housing Construction | Removable back panel for easy impeller and wear plate access | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 7.5″ / 19.05 cm | 7.5″ / 19.05 cm |
| Blower Housing Wear Plates | Standard: 1/4″-steel, replaceable | Standard: 1/4″-steel, replaceable |
| Hose Specifications | 120″ / 304.8cm length, 12″ / 30.48cm diameter intake hose 0.045 black thermoplastic rubber, wire helix with wearstrip |
120″ / 304.8cm length, 12″ / 30.48cm diameter intake hose 0.045 black thermoplastic rubber, wire helix with wearstrip |
| Unit Mounting | Hitch: Class III minimum | Hitch: Class III minimum |
| Discharge Tube | Clear thermoplastic 8″ / 20.32cm diameter 60″ / 152.4cm length |
Clear thermoplastic 8″ / 20.32cm diameter 60″ / 152.4cm length |
| Throttle Control | Commercial-grade, all-steel mechanicals, plastic debris cover | Commercial-grade, all-steel mechanicals, plastic debris cover |
| Axle | Heavy-duty Dexter Torflex® axle (2,000 lb) | Heavy-duty Dexter Torflex® axle (2,000 lb) |
| Tyres | 205 / 75 R15 highway tires with steel wheels | 205 / 75 R15 highway tires with steel wheels |
| Trailer Width | 53.5″ / 135.89 cm | 53.5″ / 135.89 cm |
| PRODUCT DIMENSIONS (approximate) | ||
| Height | 110″ / 279.4 cm | 110″ / 279.4 cm |
| Weight | 449 kg | 449 kg |
NOTE: Images shown are for illustrational purposes only, actual product may vary. Specifications subject to change. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
