Truck Loaders
Industrial Skid-Mount
BUILT TO WORK

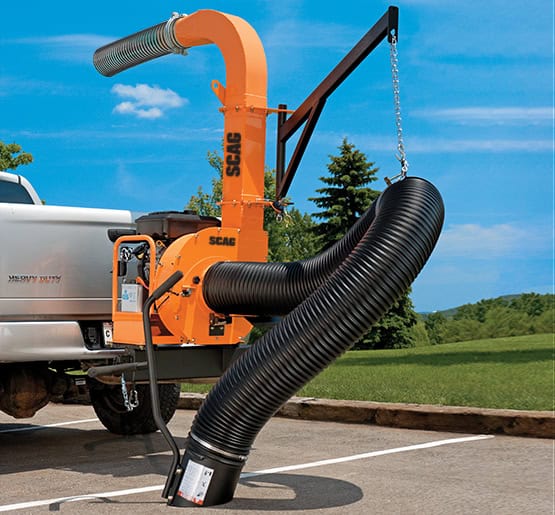

Powered by a 29hp Vanguard® Big Block petrol V-twin engine, the Industrial Skid-Mount delivers unmatched strength and performance. Designed for safe and convenient transport, it features a high-capacity fuel tank and rugged construction to keep your operation running efficiently – day after day. This machine is built for the long haul, making it the ideal choice for demanding, high- output applications.
From $67.92 / week
RRP
$67.92 / week
Actual product may differ from photos.
4-BLADE IMPELLER
FABRICATED AND BALANCED
Inside the unit’s 7.5′′-wide housing is a welded-steel impeller with 3/8′′-thick steel blades. Dynamically balanced to reduce vibration, extend lifespan, and minimise engine stress, these loaders feature a powerful, debris-reducing design with high-output of up to 132.52 cubic metres per minute.
SMART CONSTRUCTION AND CONVENIENT SERVICEABILITY
EASY ACCESS FOR SIMPLE SERVICING
A 1/4′′-thick, bolt-in, replaceable wear liner extends the unit’s service life. The removable rear-housing cover provides easy access to the impeller and wear plates making routine maintenance quicker and more efficient.

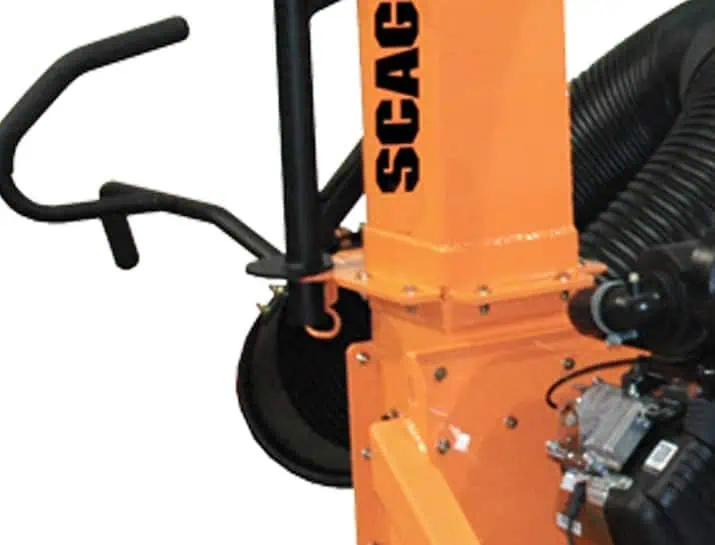

LOCKING BOOM ARM AND INTAKE NOZZLE
SAFE AND CONVENIENT TRANSPORT
The transport lock safely secures the boom arm and hose when not in use, while a nylon bearing ensures smooth movement. A transport pin locks the nozzle to the loader, protecting the hose during transit. For added convenience, the quick-detach hose allows for fast and easy transport, storage, and cleaning.
AMBIDEXTROUS NOZZLE HANDLE
EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS
The padded, large-diameter handle is designed for increased leverage and smooth manoeuvrability, giving operators comfortable control whether working from the left or right side.
12" STEEL INTAKE NOZZLE
TAKE IT ALL IN
The large, replaceable 12" intake nozzle is bevelled for easy debris pickup, helping you clear surfaces quickly and efficiently.

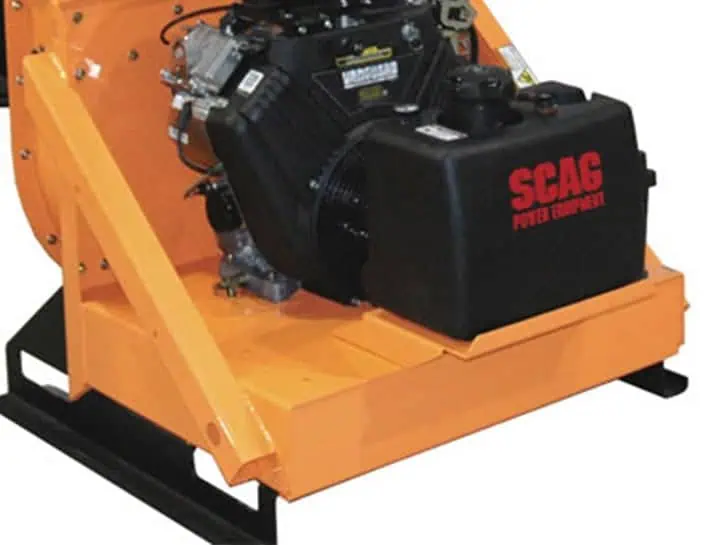

ADJUSTABLE SKID RISERS WITH FORK POCKETS
VERSATILE MOUNTING OPTIONS
The 4" skid risers with integrated fork pockets offer multiple installation points to suit a wide range of applications - or they can be completely removed for maximum flexibility.
FUEL TANK WITH BUILT-IN GAUGE
HOURS AND HOURS OF RUN TIME
The high-capacity, 20.8L, plastic fuel tank with large filler neck and built-in fuel gauge offers hours of runtime, easy filling and zero guesswork - perfect for uninterrupted, high-efficiency operation.
POWERFUL ENGINE
RELIABLE PERFORMANCE
Powered by a robust 29hp Vanguard® BIG BLOCK petrol V-twin engine with electric start, this unit delivers reliable performance and easy operation for demanding tasks.
Industrial Skid-Mount Specifications
| MODEL | TLS20-29BV |
| RRP INC-GST | $14,080 |
| GENERAL | |
| Engine | Briggs & Stratton Vanguard Big Block |
| Horsepower | 29 hp |
| Fuel Tank Capacity | 20.82 Litres |
| Output, m3/min | 132.52 |
| Frame Construction | All-steel, welded |
| Impeller Construction | 4-blade, 3/8″-thick blades, all-steel, welded |
| Impeller Mounting | Tapered locking hub |
| Impleller Diameter/ Width | 20″ / 6.5″ 50.8 cm / 16.51 cm |
| Blower Housing Construction | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 7.5″ / 19.05 cm |
| Blower Housing Wear Plates | Standard: 1/4″-steel, replaceable |
| Hose Specifications | 120″ / 304.8cm length, 12″ / 30.48cm diameter intake hose 0.045 black thermoplastic rubber, wire helix with wearstrip |
| Unit Mounting | 4″ steel skid risers |
| Discharge Tube | Clear thermoplastic, 8″ diameter |
| Throttle Control | Commercial-grade, all-steel mechanicals, plastic debris cover |
| PRODUCT DIMENSIONS (approximate) | |
| Height (without skid or hitch mount attached) | 75″ / 190.5 cm |
| Weight | 306.17 kg |
NOTE: Images shown are for illustrational purposes only, actual product may vary. Specifications subject to change. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
