Zero Turn Mowers

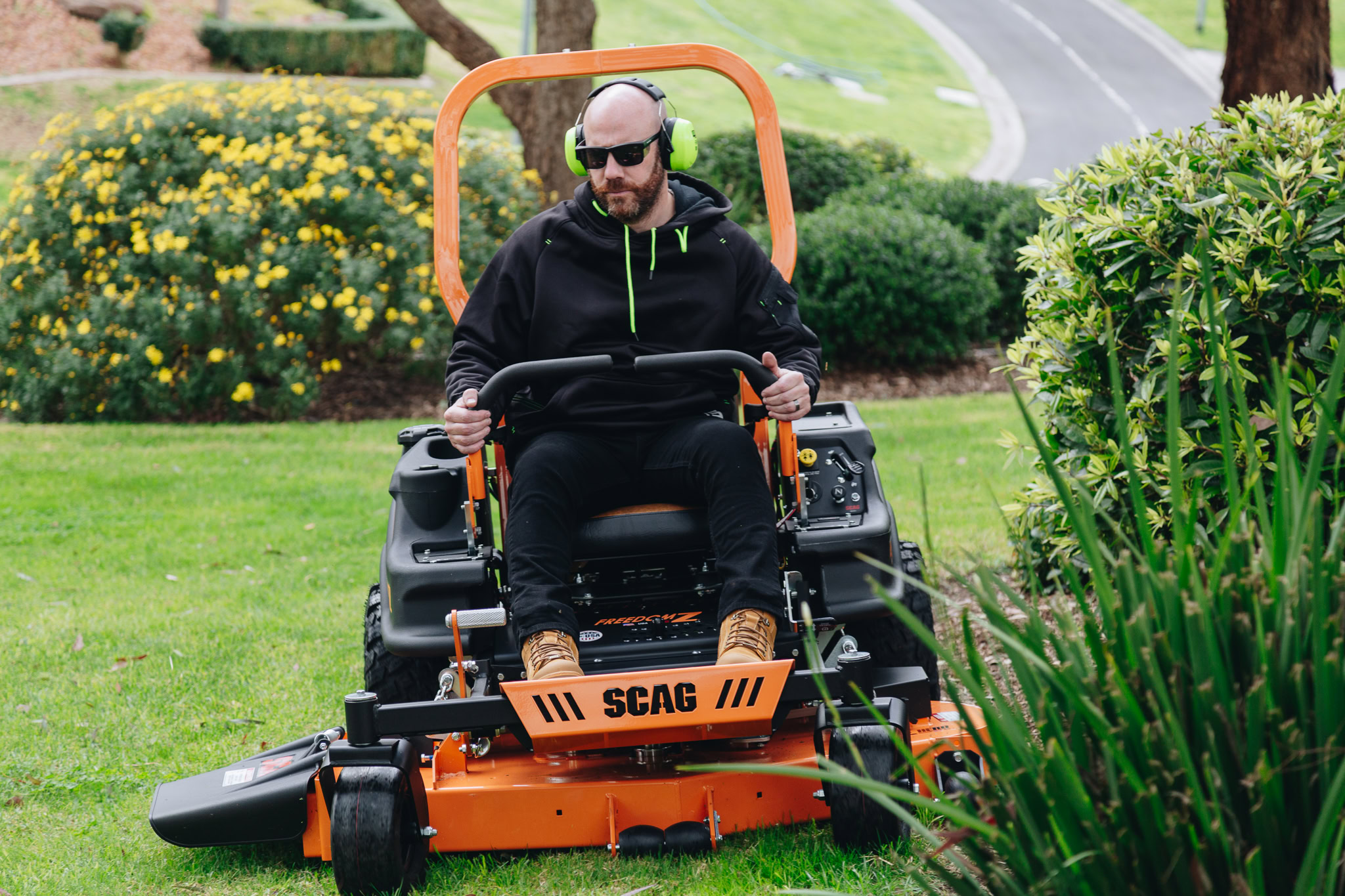

Freedom Z
FOR PROS & PROS AT HOME
All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.
From $68.50 / week
RRP
$68.50 / week
Actual product may differ from photos.
OGURA PTO CLUTCH BRAKE
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
COMMAND PERFECTION

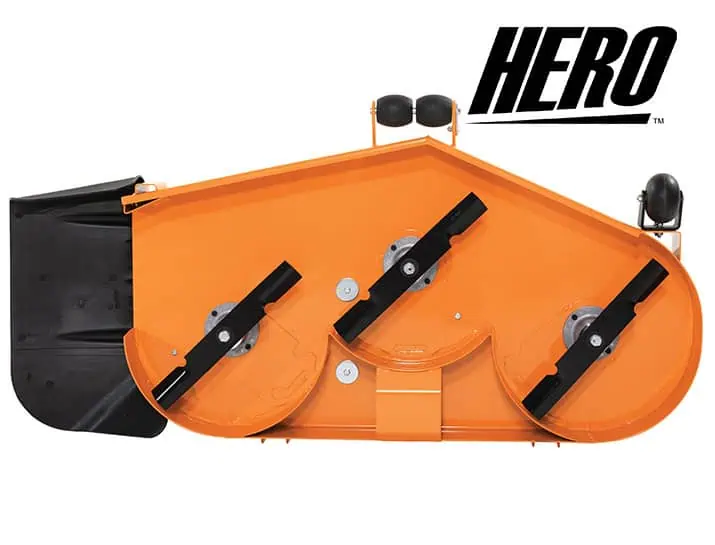

DEEP, FABRICATED, AND WELDED CUTTER DECKS
Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
HIGH-STRENGTH STEEL FRAME
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Tubular-steel main frame delivers unmatched strength and longevity.
HYDRO-GEAR ZT-2800 TRANSAXLES
SPEEDS UP TO 12.8KM/H
The ZT drive system’s dual hydro transaxles with all-metal gears and spin-on oil filters to deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.

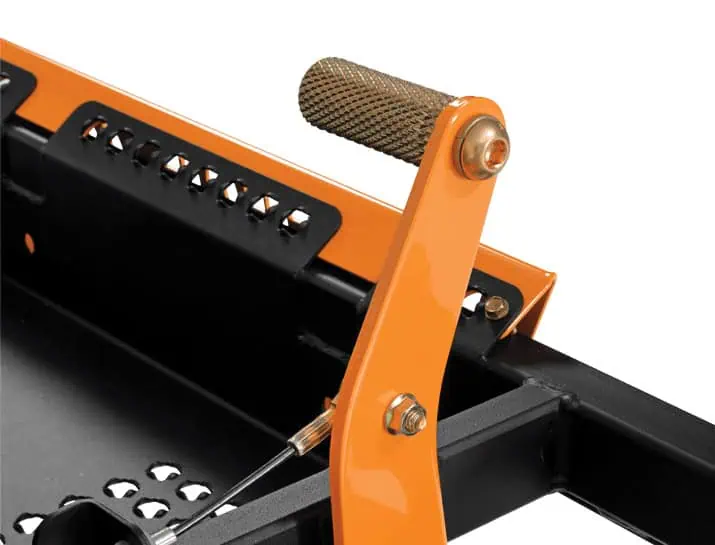

EASY FOOT-PEDAL DECK LIFT
EASY UP, EASY DOWN
Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.

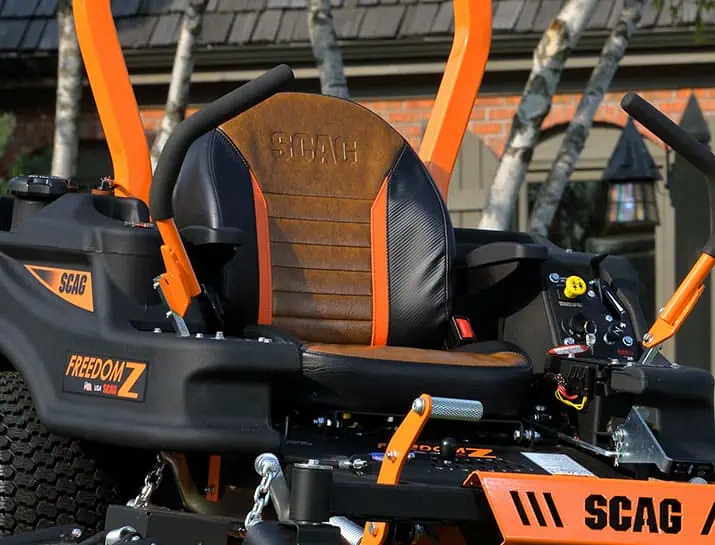

CONTOURED, BOLSTERED, HIGH-BACK SEAT
RIDE IN COMFORT
This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
ROLL OVER PROTECTION SYSTEM (ROPS)
ENHANCED OPERATOR SAFETY
The ROPS provides a protective zone around the operator, reducing the risk of serious injury or fatality during a rollover incident. When used in conjunction with a seat belt, it ensures the operator remains within the protective zone.
Freedom Z Specifications
| MODEL | SFZ48H-24KT | SFZ48H-25CX | SFZ52H-25CX | SFZ52H-26KT |
| RRP INC-GST | $14,200 | $14,200 | $14,799 | $14,799 |
| GENERAL | ||||
| Engine Brand | Kohler | Briggs & Stratton | Briggs & Stratton | Kohler |
| Engine Model | KT735 | CXi2500 | CXi2500 | KT745 |
| Horsepower | 24 hp | 25 hp | 25 hp | 26 hp |
| Displacement | 725 cc | 724 cc | 724 cc | 725 cc |
| Fuel Tank Capacity | 24.5 Litres | 24.5 Litres | 24.5 Litres | 24.5 Litres |
| Productivity, acres/day | 18.6 | 18.6 | 20.2 | 20.2 |
| Tyre Sizes | 11″ x 6″ x 5″ Front Neumatic 20″ x 10″ x 10″ Rear |
11″ x 6″ x 5″ Front Neumatic 20″ x 10″ x 10″ Rear |
11″ x 6″ x 5″ Front Neumatic 20″ x 10″ x 10″ Rear |
11″ x 6″ x 5″ Front Neumatic 20″ x 10″ x 10″ Rear |
| Seat | Padded with arm rests, adjustment forward and back (tools required) | Padded with arm rests, adjustment forward and back (tools required) | Padded with arm rests, adjustment forward and back (tools required) | Padded with arm rests, adjustment forward and back (tools required) |
| ROPS | Standard, Fixed | Standard, Fixed | Standard, Fixed | Standard, Fixed |
| Waranty Period | 5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
5-YR Residential 2-YR Commercial |
| DRIVE SYSTEM | ||||
| Type | HYDRO GEAR ZT-2800 | HYDRO GEAR ZT-2800 | TUFF TORQ TZ450 | TUFF TORQ TZ450 |
| Internal Pumps | 10 cc | 10 cc | 10 cc | 10 cc |
| Internal Motor | 16 cc | 16 cc | 16 cc | 16 cc |
| Forward Speed | 12.8 km/h | 12.8 km/h | 12.8 km/h | 12.8 km/h |
| Reverse Speed | 8 km/h | 8 km/h | 8 km/h | 8 km/h |
| Parking Brake | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels | HAND LEVER ACTIVATED linkage to brakes on both rear wheels |
| CUTTER DECK | ||||
| Type | Hero Deck | Hero Deck | Hero Deck | Hero Deck |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Spindles | Aluminum housing with sealed ball bearings. | Aluminum housing with sealed ball bearings. | Aluminum housing with sealed ball bearings. | Aluminum housing with sealed ball bearings. |
| Cutting Width | 48″ / 122 cm | 48″ / 122 cm | 52″ / 132 cm | 52″ / 132 cm |
| Cutting Height Adjustment | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments | 1.5″ to 4.5″ in .25″ increments |
| Deck Lift | Foot-operated pedal | Foot-operated pedal | Foot-operated pedal | Foot-operated pedal |
| Blades | 3 x 16.5″ | 3 x 16.5″ | 3 x 18″ | 3 x 18″ |
| Clutch / Blade Engagement | ORGUA GT1 (74FT LB) Adjustable Air Gap |
ORGUA GT1 (74FT LB) Adjustable Air Gap |
ORGUA GT1 (74FT LB) Adjustable Air Gap |
ORGUA GT1 (74FT LB) Adjustable Air Gap |
| Discharge Opening | Side-discharge | Side-discharge | Side-discharge | Side-discharge |
| PRODUCT DIMENSIONS (approximate) | ||||
| Length | 73″ / 185.42 cm | 73″ / 185.42 cm | 73″ / 185.42 cm | 73″ / 185.42 cm |
| Width (chute down) | 60.5″ / 153.67 cm | 60.5″ / 153.67 cm | 64.5″ / 163.83 cm | 64.5″ / 163.83 cm |
| Width (chute in transport position) | 49″ / 124.46 cm | 49″ / 124.46 cm | 53″ / 134.62 cm | 53″ / 134.62 cm |
| Height | 60″ / 152.4 cm | 60″ / 152.4 cm | 60″ / 152.4 cm | 60″ / 152.4 cm |
| Weight | 338 kg | 338 kg | 346 kg | 346 kg |
NOTE: Images shown are for illustrational purposes only, actual product may vary. Specifications subject to change. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
